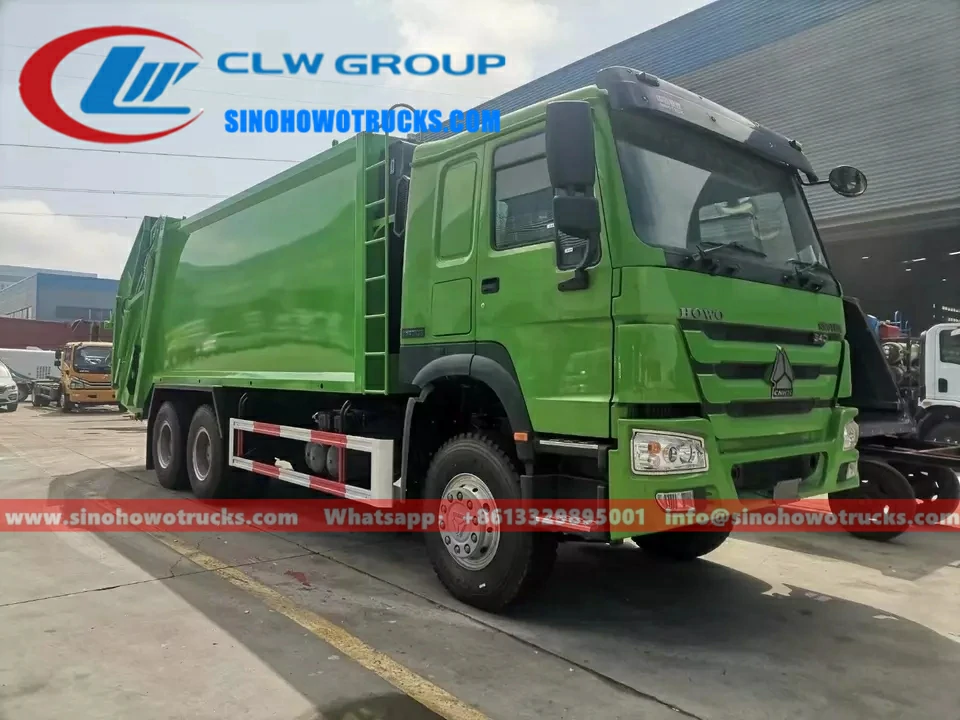

12 wheels Howo 16m3 garbage compression truck Description:
- 12 wheels Howo 16m3 garbage compression trucks also called Truck-mounted compactors, sanitation garbage compactors, compressing garbage trucks, waste compactors garbage trucks, and Hydraulic compressor garbage trucks.
- The compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large stations, ports and wharves, airports, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standards. which is safe and environmental-protective.
Advantage:
- HOWO 336HP heavy-duty chassis, perfect performance
- Sinotruck engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cubic meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| Item No. | Parameters 12 wheels Howo 16m3 garbage compression truck Malaysia |
| Overall Dimension | 10400x2500x3400 mm |
| Gross Vehicle Weight | 25000 kg |
| Curb weight | 13650 kg |
| Loading capacity | 10000-20000 kg |
| Front axle loading capacity | HF9, 1×9000 kg |
| Rear axle loading capacity | ST16, 2×16000 kg |
| Max Driving Speed | 75 km/h |
| Engine | WD615.87, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Engine horsepower | 290 HP |
| Emission Standard | Euro II |
| Displacement | 9.726L |
| Gear Box | HW19710, 10 Forwards gear & 2 reverse gear |
| Steering Gear | ZF 8098, power steering, hydraulic steering with power assistance |
| Clutch | Reinforced diaphragm clutch, diameter 430mm |
| Fuel Tank | 400L Aluminum alloy fuel tank |
| Cabin | HOWO 76 Standard Cab, LHD Two seats with 1 sleeper, with air conditioner, 70° hydraulically tillable to the front. |
| Tire | 12R22.5 Tubeless Tire, 10 pieces with one spare |
| Brake | Service brake: dual circuit compressed air brake Parking brake: spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
| Equipment | 1. Garbage body: 18m3. 2, Equipped with a hermetic dustbin, hydraulic system and operating system 3, Automatic compress and uninstall, sewage can be collected by the dump tank. 4. Cycling time<14–18s |
Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump, and double valve | Body material | High-strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail-lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
New craft:

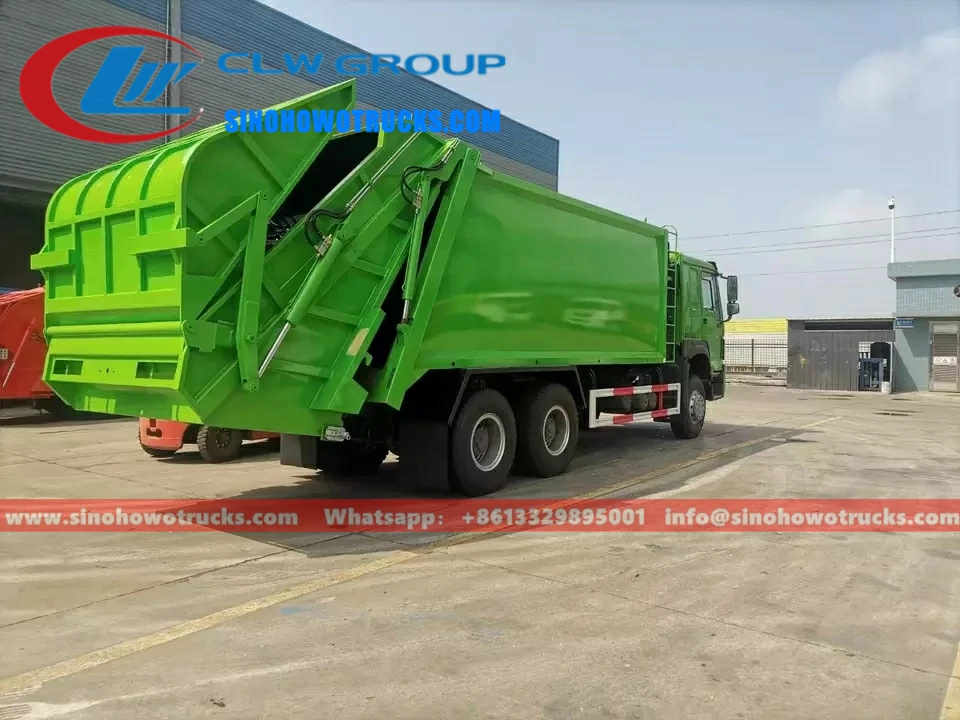

Various rear loading systems:
customized drawing:
Detail drawing:
Common garbage truck style:
trash collection truck technical training support:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
