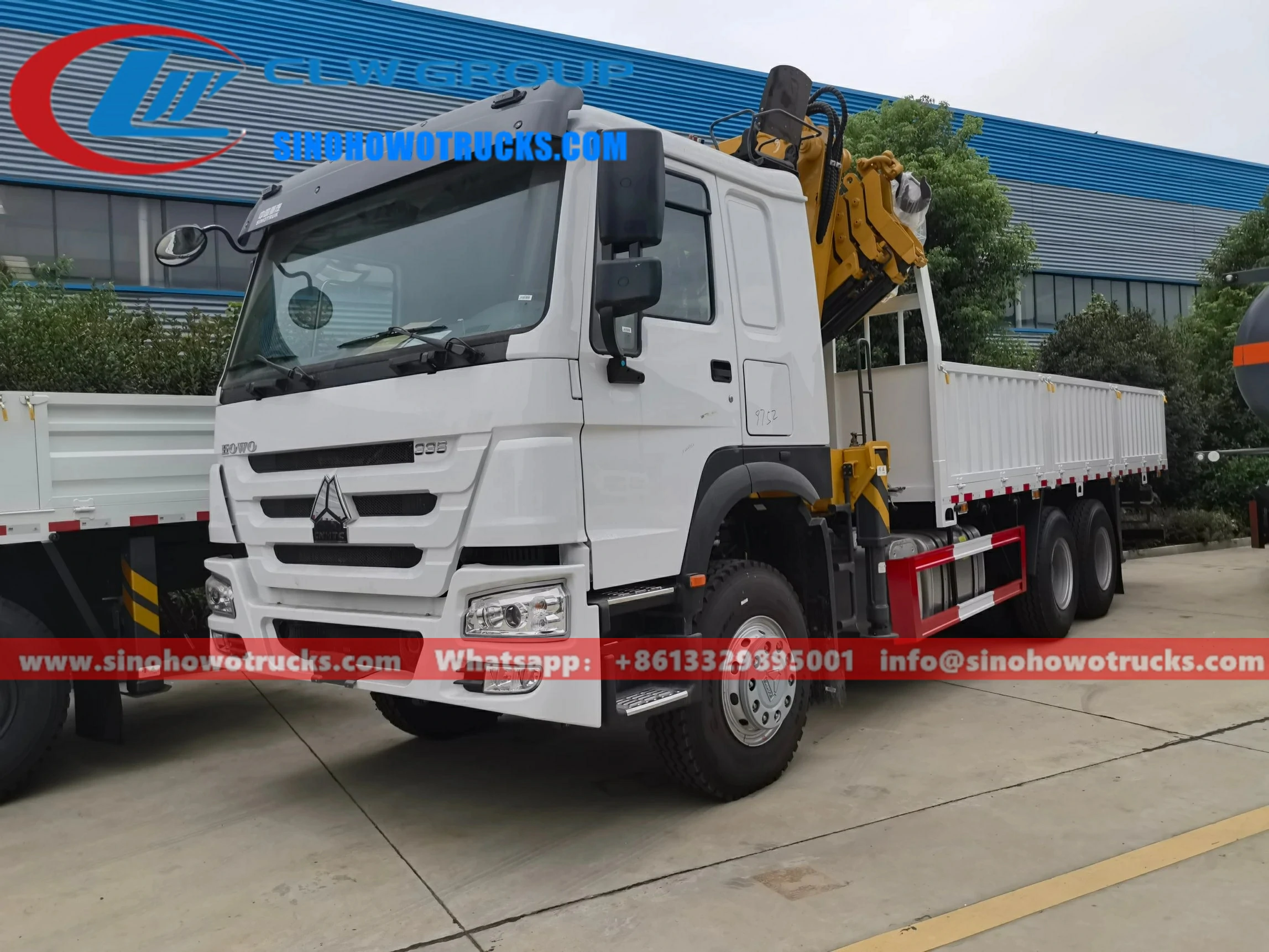

6WD Sinotruk Howo all drive telescopic boom truck Description:
- 6WD Sinotruk Howo all drive telescopic boom truck also called as construction crane trucks, Isuzu truck loader vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, making the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Advantage:
- 6X4 HOWO chassis ensures perfect performance in driving
- Sinotruk technology engine, super powerful, no overhaul within 500,000 km.
- High-strength cargo body, nice shape, and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG, or Chengli (China’s top brand), etc.
Crane Features:
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means making sure that the design is very reliable.
- The more symmetrical center design of the pentagon & hexagon boom makes it a bigger anti-bending capacity.
- A compact hinge point design takes up smaller space
- The work is more safety after fitting over-wind alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged the work lift of the hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machines with greater drive force can meet varied requirements of working situations.
- Anti-slewing impulse equipment that makes vehicles run safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckle boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control is optional (where the Operator Seat is attached to the Main Boom)
Specification:

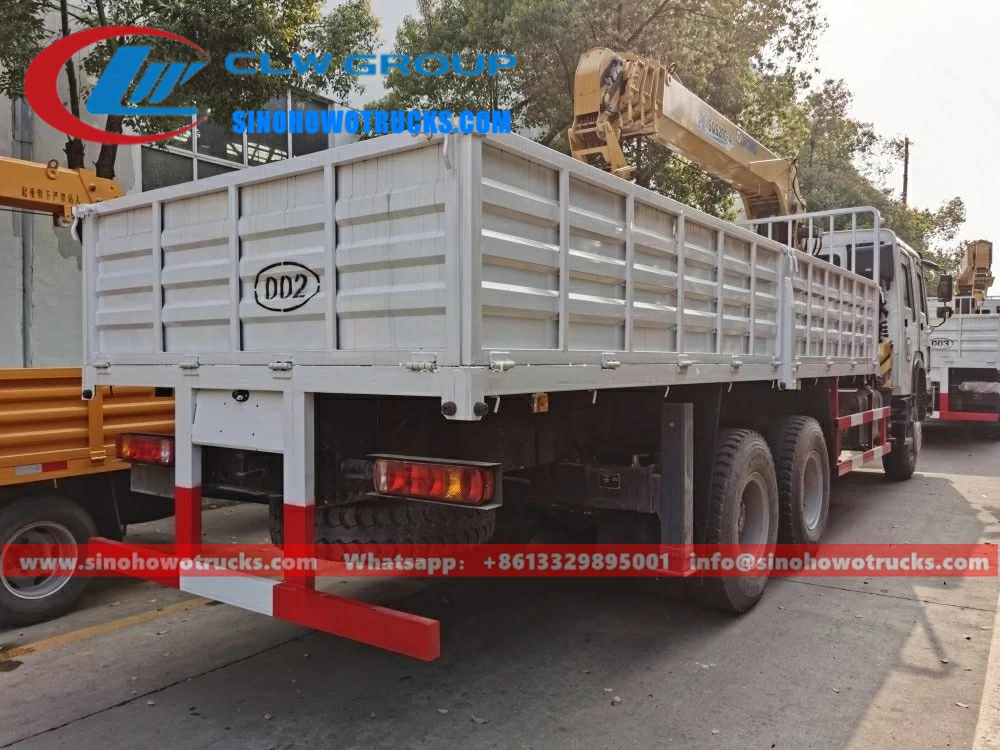

| Vehicle name | 6WD Sinotruk Howo double cabin all drive telescopic boom truck nigeria | |
| Drive type | 6×4 or 6×6,left or right hand drive | |
| Main dimensions | Overall dimensions | Approx.12000x2550x3995 |
| Box dimensions | 8000x2450x600 | |
| bottom 3mm, side 1.2mm | ||
| Wheelbase(mm) | 5825+1350,also can choose short wheels chassis | |
| Weight date | Payload weight(kg) | 25000 |
| Curb weight(kg) | Approx.18900 | |
| Person in cab (persons) | 3 | |
| Engine | Model | WD615.47 (Sinotruk brand) |
| Engine type | 6 cylinders, Turbocharged,inter-coooled,diesel,EURO 2 | |
| Displacement (L) | 9.726 | |
| Rated power(kw/rpm) | 273KW/371HP | |
| Axles | Front axle | HF9+HF9 |
| Rear axle/speed rate | HC16+HC16 | |
| Brake system | Service brake | dual circuit compressed air brake |
| Parking brake | Air discharging with spring control | |
| Auxiliary brake | engine exhaust brake | |
| ABS | Without ABS | |
| Gearbox | HW19710, 10 forwards,2 reverse, manual | |
| Steering | ZF power steering | |
| Suspension | Multi leaf spring suspension front and rear | |
| Wheels and tire size | (12+1) / 12.00R20 | |
| Basic equipment | 1. Air conditioner | |
| 2. Howo cab with one sleeper | ||
| 3. turning of the cab | ||
| 4. Warm air | ||
| 5. Metal bumper | ||
| 6. HOWO logo, Full English logo | ||
| Crane specifications | ||
| Crane | X CMG 10tons 4 booms (SQS250),With rear hydraulic system legs | |
| Please check appendix 2 | ||
crane Working parameter:
Boom Truck crane New craft:
Truck loader crane Optional configuration:
Hydraulic crane truck details:
Lorry truck mounted crane Optional model style：
Factory Advantage:
- 18 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
