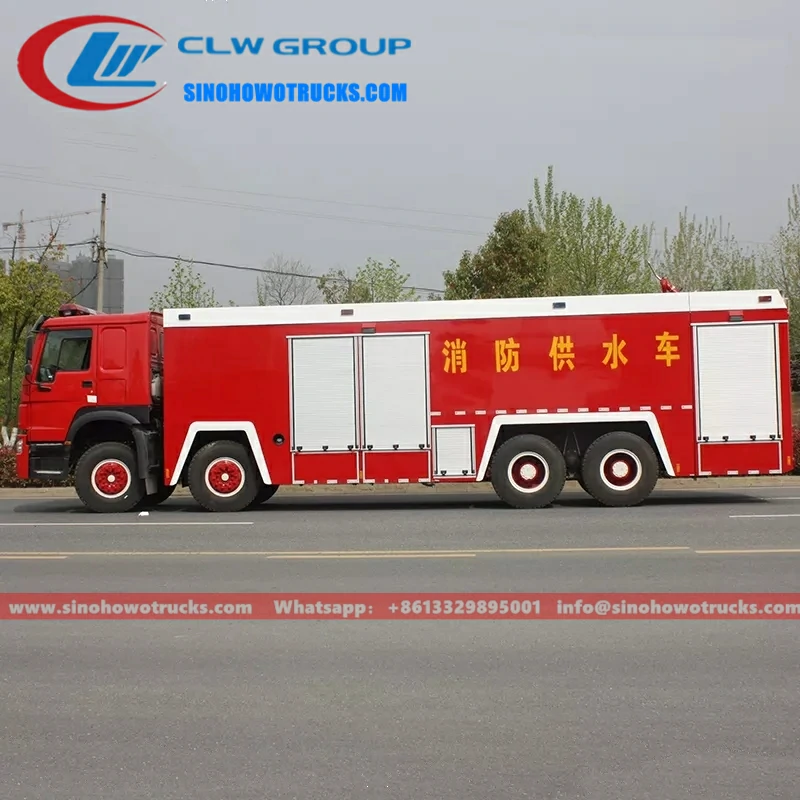

8×4 Sinotruk Howo heavy duty 25 ton fire truck Description:
- 8×4 Sinotruk Howo heavy duty 25 ton fire trucks are also called fire fighting tankers, fire appliances, fire fighting engines, fire-extinguishing water trucks, service trucks, fire rescue trucks, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage:
- 100% custom-made
- HOWO heavy-duty Chassis, Durable & Performance.
- Sinotruk engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification:
| Name | 8×4 Sinotruk Howo heavy duty 25 ton fire truck for sale Myanmar | ||
| Item | Specifications | Item | Specifications |
| Truck Parameter | |||
| Model | YZR5410GXFSG240 | Chassis Model | ZZ5437 |
| Gross Weight (kg) | 41000 | Overall dimensions (mm) | 11900*2500*3635 |
| Payload Weight (kg) | 23550 | Tank Volume(cbm/t) | water 22 |
| Curb Weight (kg) | 17300 | Wheelbase (mm) | 1800+4600+1350 |
| Engine Parameter | |||
| Model | D12.42-40 diesel | Brand | Sinotruk |
| Power/Displacement (kw/ml) | 308/10518 | Emission Level | Euro 4 |
| Specification | |||
| Max speed (km/h) | 85 | Front Track (mm) | 2022 |
| Cab | 2 | Rear Track (mm) | 1830 |
| Leaf Spring | 11/11/13 | Front/Rear Overhang (mm) | 1500/2545 |
| Number of Tyres | 12 | Approach / DepartureAngle(°) | 14/13 |
| Tyre Specification | 12.00-20 | Axle Load (kg) | 8500/7300/12600/12600 |
| Number of axles | 4 | ||
| Special Function | |||
| Tank Capacity (L/T) | water 22ton | ||
| Fire Monitor | Model:PS70 rate of flow:70L/S/1MPa,water range:≥75m | ||
| Fire Pump(Normal Pressure)middle-lower pressure is optional | 1. Normal pressure model::CB10/80,rate of flow:80L/s, pressure:1.0MPa | ||
| 2.water diversion time ≤35s (7m absorbing depth) water ring sandwitch type full power PTO | |||
| Performance Description | |||
| complete steel frame welding structure cab, the front of crew cab is connected with driving cab; inside tank model, qualitative carbon steel material (Q235A),thickness 4mm, preservative treatment, durable in use; aluminium alloy roller shutter door,easily operate with little noise,besides the origional equipments, there are PTO indicator light, 100w alertor,LED alarm lamp, identification lamp, clearance lamp and rear lamp. | |||
ISUZU Fire fighting vehicle Bodywork details:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 125×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF125 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Fire extinguisher | 3KG | 1 | With | |
| 16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 17 | Rubber hammer | 1 | Piece | ||
| 18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 12V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand lift the pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
fire fighting engine Parts Picture：
Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
