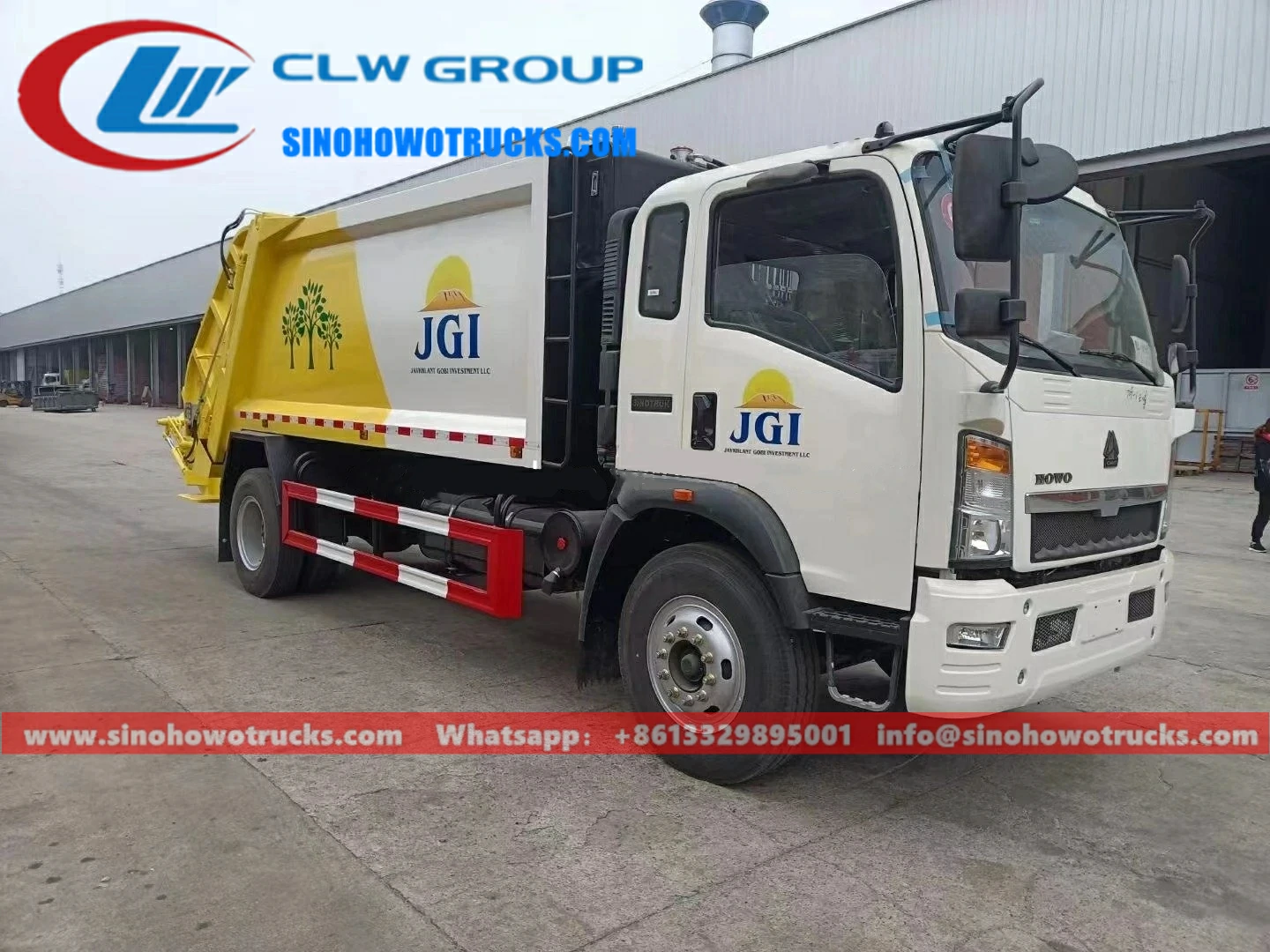

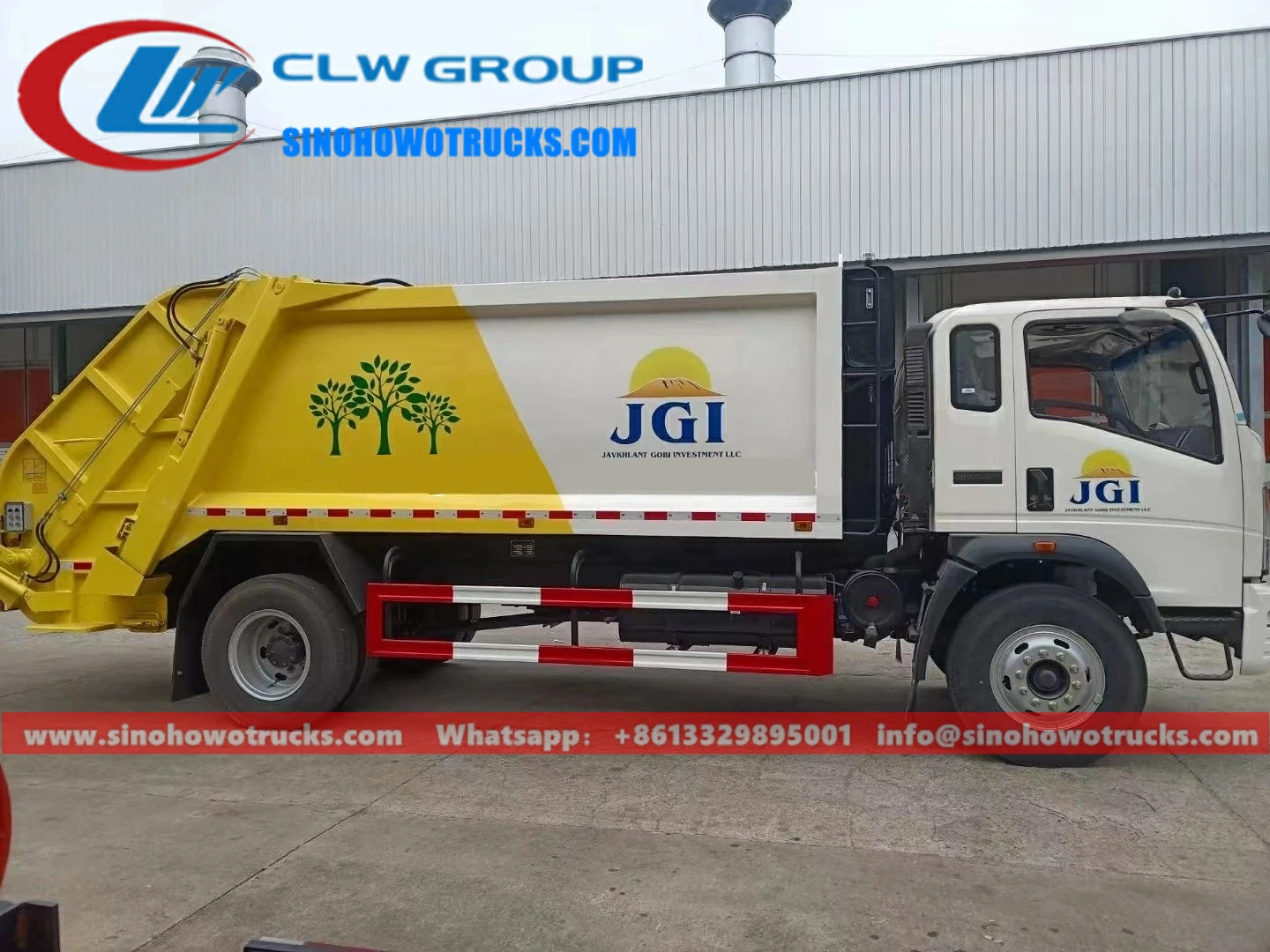

HOWO 7cbm waste truck Description:
- HOWO 7cbm waste trucks also called Truck-mounted compactors, sanitation garbage compactors, compressing garbage trucks, waste compactors garbage trucks, and Hydraulic compressor garbage trucks.
- The compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large stations, ports and wharves, airports, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standards. which is safe and environmental-protective.
Advantage:
- HOWO 154HP light duty chassis, perfect performance
- Sinotruck engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cubic meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| HOWO 7cbm waste truck for sale Comoros | ||
| General | Vehicle Brand | CLW |
| Chassis Brand | Sinotruk HOWO | |
| Overall Dimension | 7010x2496x3450 mm | |
| GVW / Kerb Weight | 5000 kg / 3,505 kg | |
| Cab | Cab Capacity | 3 persons allowed |
| Air Conditioner | Air conditioner equipped | |
| Engine | Fuel Type | Diesel |
| Engine Brand | Sino engine | |
| Power | 116 Hp | |
| Displacement | 8300 cc | |
| Emission Standard | Euro 3 | |
| Chassis | Drive Type | 4×2, left-hand drive or right-hand drive |
| Transmission | 6 front and 1 reverse | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-15 | |
| Tyre Number | 6 tires and 1 spare tire | |
| Max Speed | 80 km/h | |
| Paint | Metallic paint | |
| Superstructure and the main characteristic | Garbage box Capacity | 5 cbm ( 5 ton ) |
| Garbage box Material | Carbon steel | |
| 1: Can choose 240L(single bin, double bins)or 360L,660L, and 1100L standard bin lifting and turnover mechanism, can also choose a groundhopper and other kinds of loading mechanism. | ||
| 2: With manual and automatic two sets of control methods, the operator can control in the cabin, in the middle side or the back of the truck, very convenient and efficient. | ||
| 3: With the working device of the emergency braking stop button. | ||
| 4: Garbage body use frame design, elegant, strong structure, large effective capacity. | ||
| 5: Equipped with a special collection box, sewage is directly into the sewage tank in the process of compression, which effectively prevents the second pollution caused by sewage leaks. | ||
| 6: Through hydraulic system design, the truck achieves the function of two-way garbage compression, that is improve the compressibility, making the compression ratio up to 1:2.5, the garbage can reach more than 600~800kg/m3 after compression. | ||
| 7: All other standard accessories: Tool kit, English manual… | ||
Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump, and double valve | Body material | High-strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail-lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
