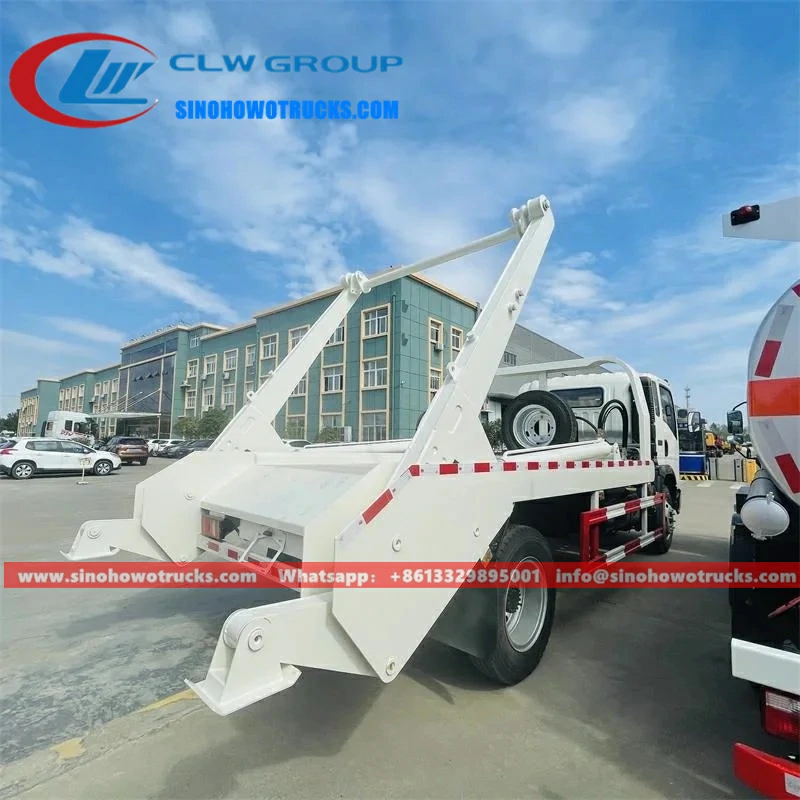

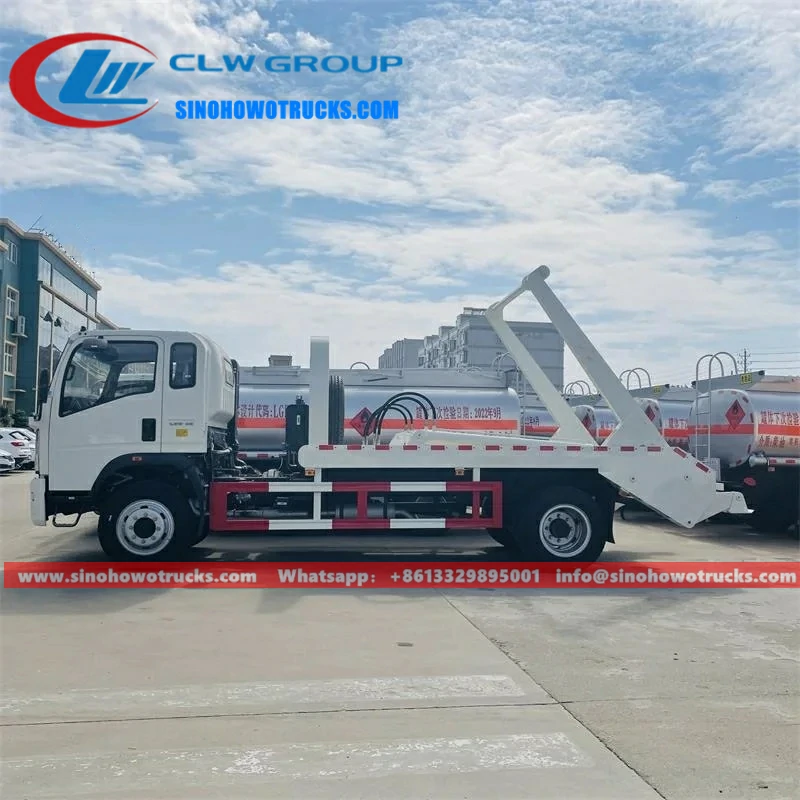

Howo 8m3 skip loading dumpers Description:
- Howo 8m3 skip loading dumpers is also called Swing Arm Garbage Truck, skip refuse truck, skip collection truck, or skip loader garbage truck.
- Skip Loader is a garbage truck with a detachable body container. Which could enable one truck with several garbage containers for recycling use.
- It could be equipped with a cover to prevent dropping any rubbish.
Advantage:
- 4×2 HOWO chassis, perfect performance
- Cummins engine is super powerful; has reliable performance, and no overhaul within 500,000 km.
- The dust bin material of carbon steel Q235A has more types and more specifications to meet various customers’ needs in different regions.
- Designed sewage collecting box in the bottom of fill device, the sewage directly flows into the box, avoiding re-pollution.
- Hydraulic systems: two separate kinds of hydraulic control–electric control and manual control, makes the operation more simple and convenient.
- Skip garbage trucks with detachable containers can realize the function of garbage bins and truck bodies separate, which means that one vehicle can work with more than one garbage cargo body, to recycle transport, and improve the transport capacity.
- Ranges of types for your customized choice. Type of garbage box: sealed, semi-enclosed. The shape of the garbage box: is rectangular shape, trapezoidal.
Specification:
| Howo 8m3 skip loading dumpers Somalia | ||
| General Parameter | Drive model | 4×2 LHD |
| Curb Weight | 4460 | |
| Loading Capacity | 8000 KGS | |
| Approach/Departure angle | 19/13 | |
| Overall Dimensions | 8020*2380*3175 mm | |
| Wheel Base | 3815mm | |
| Overhang (front/rear) | 1230/1840 mm | |
| Wheel Track (front/rear) | 1858/1608 mm | |
| Leaf Spring | 8/10+7 | |
| Tire Quantity | 6(with 1 spare tire) | |
| Tire Type | 9.00R20 | |
| Max. Driving Speed | 80 km/h | |
| Cab | Passenger | 3 |
| Air Condition | With | |
| Gearbox | 5 forwards & 1 reverse | |
| Engine Parameter | Engine Model | Sino |
| Fuel | Diesel | |
| Intake Type | Turbocharged | |
| MAX Power | 160 hp | |
| Emission standard | Euro 3 | |
| Cylinder Number | 6 | |
| Cylinder Arrangement | In-Line | |
| Rated Speed | 2500rpm | |
| MAX Output Power | 132kW | |
| MAX Torque | 700N.m | |
| Displacement | 5.9L | |
| Specification | ||
| Upper parts | Garbage bucket dimension | 4700*1850*1400mm |
| Garbage bucket volume(m3) | ground bucket or underground bucket 8m3 | |
| Compartment material | side and back 3mm,floor 4mm carbon steel | |
| Standard Configuration | With one garbage bucket, with a rear outrigger | |
| Dump angle(°C) | ≥45° | |
| Dump type | Hydraulic cylinder lifting self-loading | |
| Hydraulic system pressure(Mpa) | ≤16Mpa | |
| Specification | ||
| Upper parts | Control method | manual hydraulic control on the body side |
| Circumrotate Radius of the arm(mm) | 2500(On the ground) | |
| 2700 (Underground) | ||
| Swing angle of arm(°C) | 145 | |
| Obliquity for self-loading garbage bin(°C) | ≥85 | |
| Limited back obliquity of arm(°C) | ≥190 | |
| Filling Circulation Time(s) | 20-25 S | |
| Unloading bucket hoisting time(s) | 30 S | |
| Hydraulic system rating working pressure | ≥20 Mpa | |
| Oil cylinder | Hydraulic oil cylinder, 2 sets | |
structure diagram:
Skip loader Operation status:
Detailed images:
Detail drawing:
Common garbage truck style:
trash collection truck technical training support:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
