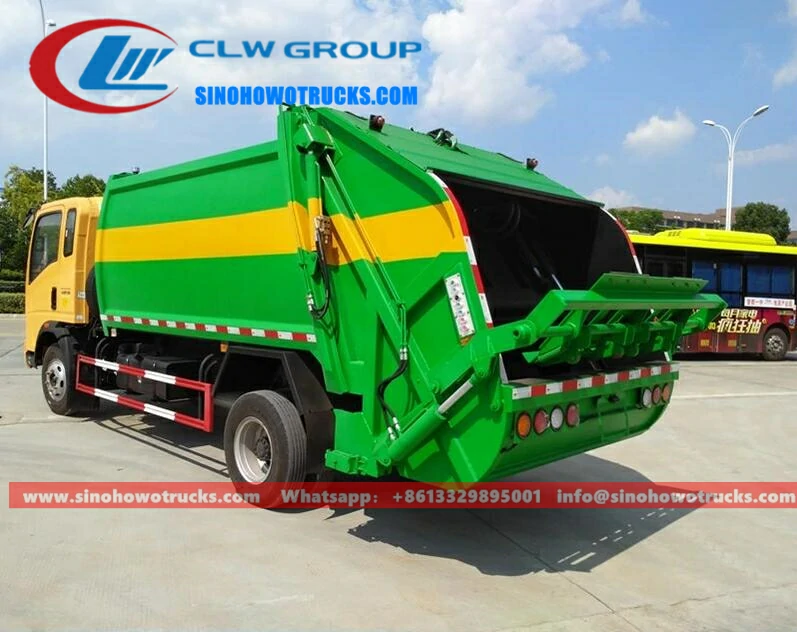

Sinotruk 6m3 rear loader recycling truck Description:
- 4×2 Sinotruk 6m3 rear loader recycling trucks also called Truck-mounted compactors, sanitation garbage compactors, compressing garbage trucks, waste compactors garbage trucks, and Hydraulic compressor garbage trucks.
- The compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large stations, ports and wharves, airports, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standards. which is safe and environmental-protective.
Advantage:
- HOWO 116HP light duty chassis, perfect performance
- Sinotruck engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cubic meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| Cabin | Sinotruk 6m3 rear loader recycling truck Tajikistan | ||
| 1880 Standard cab, with three seats, with A/C. Left Hand Driven. 70°hydraulically tillable to the front as attached photo for ref. | |||
| Vehicle Main Dimensions | Overall dimensions (L x W x H)mm | 6600x2050x2540 | |
| Wheelbase (mm) | 3360 | ||
| Wheel track (front/rear) (mm) | 1625/1545 | ||
| Approach/Departure angle(°) | 20/20 | ||
| Weight in KGS | Tare Weight | 4700 | |
| Loading Capacity | 3500 | ||
| Front axles loading capacity | 1×3200 | ||
| Rear axles loading capacity | 1×5000 | ||
| Max. driving speed(km/h) | 90 | ||
| Engine | Brand | YUNNEI POWER | |
| Model | YN4102 | ||
| Type | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||
| Horse Power(HP) | 116 HP | ||
| Emission standard | Euro Ⅱ | ||
| Gearbox | WLY6T100 , 6 forwards &1 reverse | ||
| Clutch | Diaphragm spring clutch | ||
| Steering Gear | Power steering | ||
| Fuel tank (L) | 120 L | ||
| Tire | 7.00R16 All radial tires with one spare, 7 pieces | ||
| Compression garbage box body system | |||
| BodyVolume | 5 CBM | ||
| Cycle Time of Filling(S) | ≤30 | ||
| Lifting Time of Filler(S) | 8-10 | ||
| Time of Discharging | ≤50 | ||
| Working Pressure(MPA) | 16 | ||
| Composed by a hermetic garbage tank, hydraulic system, and operating system. The entire truck is hermetic, and can automatically compress and dump the garbage .and the sewage generated in the process of the compression all goes into the sewage tank. | |||
Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump, and double valve | Body material | High-strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail-lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
New craft:
Various rear loading systems:
customized drawing:
Detail drawing:
Common garbage truck style:
trash collection truck technical training support:
Garbage collection vehicle tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Isuzu Truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
