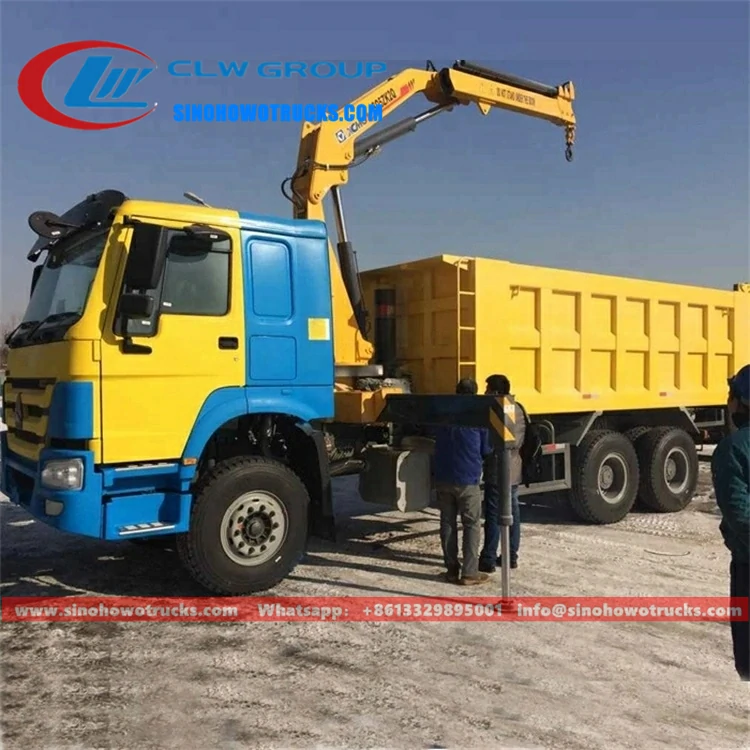

Sinotruk Howo 10 ton tipper truck with crane Description:
- Sinotruk Howo 10 ton tipper truck with crane also called as construction crane trucks, Isuzu truck loader vehicle, truck mounted crane, Lorry with crane, Folding boom truck crane is a type of machine can carry heavy weights and transport them.
- crane mounted can load and unload the freight itself and don’t need to employ another crane.
- The loader crane can freely route in 360 degrees, raise and extend, making the loading simple and economic. Compare to the mobile crane, truck loader cranes are more convenient and effective.
Advantage:
- 6X4 HOWO chassis ensures perfect performance in driving
- Sinotruk technology engine, super powerful, no overhaul within 500,000 km.
- High-strength cargo body, nice shape, and rational structure.
- Easy operation and easy maintenance.
- Premium cranes Palfinger, XCMG, or Chengli (China’s top brand), etc.
Crane Features:
- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.
- Advanced development means making sure that the design is very reliable.
- The more symmetrical center design of the pentagon & hexagon boom makes it a bigger anti-bending capacity.
- A compact hinge point design takes up smaller space
- The work is more safety after fitting over-wind alarm equipment.
- The integer lifting winch improved the work efficiency greatly and prolonged the work lift of the hydraulic system.
- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.
- Self-designed & developed slewing machines with greater drive force can meet varied requirements of working situations.
- Anti-slewing impulse equipment that makes vehicles run safely
- All Structural made of High Strength Steel
- Optional Crane type: Telescopic boom crane or knuckle boom crane
- Radio Remote Control Available as an Optional Fitment
- Top Seat Control is optional (where the Operator Seat is attached to the Main Boom)
Specification:
| Cabin | Chassis Model | Sinotruk Howo 10 ton tipper truck with crane for sale Burkina Faso |
| Manufacturing year | 2020, brand new | |
| Driving type | 6×4 | |
| HOWO 76 cab, with air-condition and one bed,
70°hydraulically tillable to front, Right-hand drive or Left hand |
||
| Vehicle
Main Dimensions |
Overall dimensions (L x W x H) | 9300x2500x3650mm |
| Dump body Size (L x W x H) | 5200x2300x1600mm | |
| Dump body thickness | Side 4mm, Bottom 6mm | |
| Dump body material | Q345 | |
| Lifting system | Middle lifting | |
| Wheel base | 4325+1350mm | |
| Wheel track (front/rear) | 2022/1830/1830mm | |
| Approach/Departure angle(°) | 19/21 | |
| Weight in KGS | Tare Weight | 14800 |
| Payload | 20Ton | |
| Front axles loading capacity | 9000kg | |
| Rear axles loading capacity | 2x16000kg | |
| Max. driving speed(km/h) | 90 | |
| Engine | Brand | SINOTRUK |
| Model | WD615.47 | |
| Horse Power(HP) | 371 | |
| Displacement(ml) | 9726 | |
| Emission standard | Euro 2 | |
| Gearbox | HW19710,10 Forwards gear & 2 reverse gear | |
| Tire | 12.00R20,10 tires with one spare, radial tire | |
| Clutch | Reinforced diaphragm clutch, diameter 430 mm | |
| Crane specifications | Brand : SQZ132 | |
| Type: Four arms, Knuckle Boom Type | ||
| Max lift capacity: 6300 kg | ||
| Max working radius 9.92 m, Max lifting height: 13m | ||
| Max Lifting Moment 13.23T.M | ||
| Recommend Power:18kw | ||
| Oil Tank Capacity:90L | ||
| Crane weight:2226kg | ||
| Slewing angel:360°All rotation | ||
crane Working parameter:
Boom Truck crane New craft:
Truck loader crane Optional configuration:
Hydraulic crane truck details:
Lorry truck mounted crane Optional model style：
