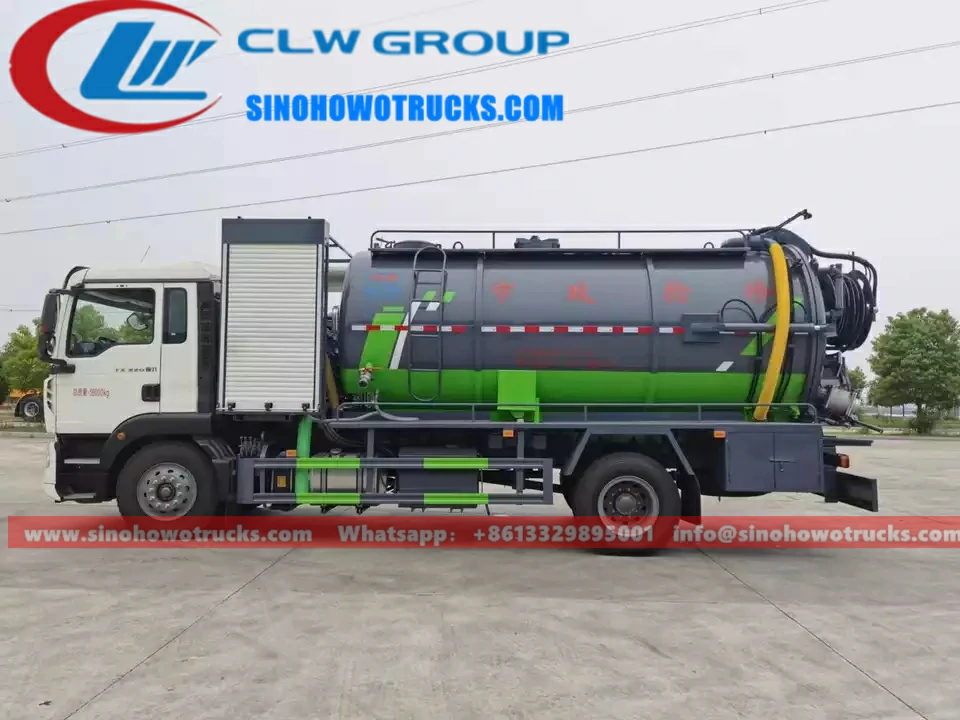

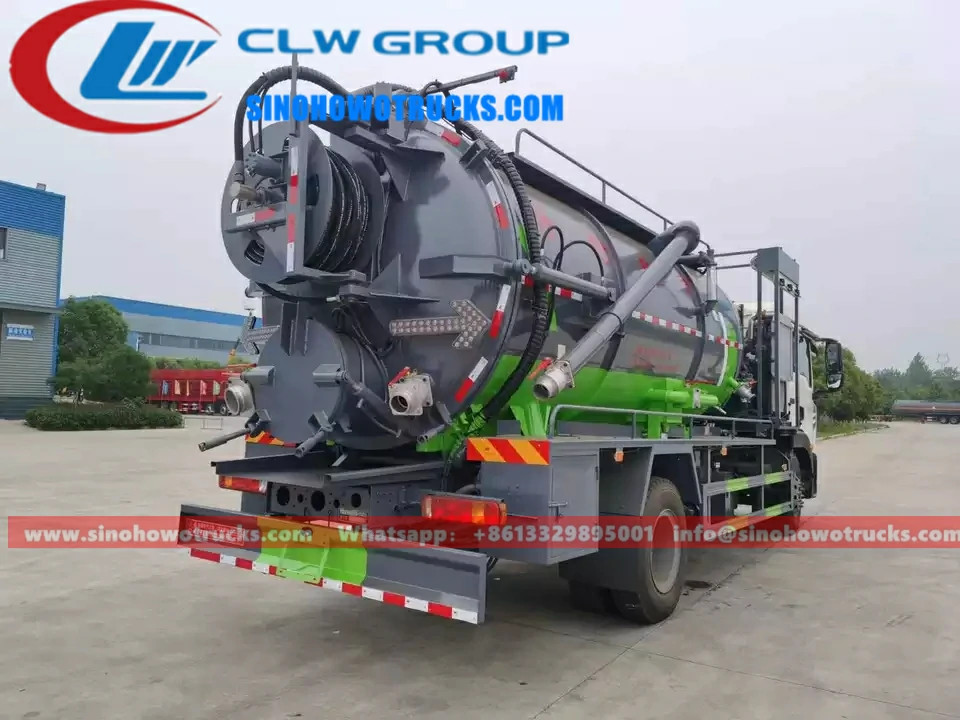

SINOTRUK HOWO 12000L jet vac combo truck Description:
- SINOTRUK HOWO 12000L jet vac combo truck also called Combined jet vacuum truck, suction jetting truck, combination sewer cleaner, combined jet suction truck, jetting and vacuum truck, vacuum and jet vehicle, combine jetting / sucker truck
- The fecal suction truck is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipelines under high pressure, and clear sewer drain lines by means of powerful vacuum suction to suck all water plus mud from the sewer hole. This truck is widely used for environmental protection.
- ISUZU combined vacuum jetting truck carries a high-pressure pump, a water tank, high-pressure hoses, and nozzles; also a vacuum, vacuum tanker, and suction pipeline. and can be mounted on chassis 4×4, 4×2, 6×4, 6×6, etc
Advantage:
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- Sinotruk HOWO chassis, perfect performance
- Sinotruk technology engine option, super-powerful, no overhaul within 500,000 km.
Specification:
| Item | Parameters | |
| Whole tank vehicle | Name | SINOTRUK HOWO 12000L jet vac combo truck Mauritania |
| Chassis | DONGFENG, SINOTRUK, ISUZU | |
| Wheelbase | 4350+13500 mm | |
| GVW | 25000 kg | |
| Payload | 6570 mm | |
| Dimension | 9800*2496*3780 mm |
| Sludge and Water Tank | Material | Mild steel |
| Capacity | 6,000L sludge tank & 4,000L fresh water tank | |
| Shell thickness | 5mm | |
| Tipping cylinder | Front tipping and double acting cylinder | |
| Safety support | Support the tank to ensure safety when it’s tipped up | |
| Sight glasses | 3units are mounted at the rear of the tank | |
| Over pressure safety | Over pressure relief valve on tank top | |
| Full opening rear lid | Hydraulically opening and locking | |
| Inlet and Outlet Valve | Pneumatically and Manual operation | |
| Primary shut off | SS float ball prevents overfilling sludge tank. |
Working parameter:
| Dredge function | Sewage suction function | ||
| High-pressure pump brand | Tianjin Tongjie standard, Germany Pinfu optional | Vacuum pump brand | Veyron is standard, Shandong water ring pump is optional |
| Drive method | Chassis engine + sandwich power take-off | Drive method | A power take-off, Weichai 340-420 vice machine |
| Dredge stress | 16-24 Mpa | Suction pressure | -0.3Mpa |
| Dredge traffic | 75-275 liters per minute | Exhaust flow | 6-35 cubic meters |
| High-pressure tube length | Standard 80 meters, can add 40 meters | Sewage pipe length | Standard one 8 meters, can add 4 |
| High-pressure nozzle | Standard 10 nozzles with different functions | Blowdown method | Air blowdown + tank tail flow + lift dump |
| Coil reel | Hydraulic rotation + labor-saving + tube self-cleaning | Tank material | Carbon steel Q345, stainless steel 304 |
| Antifreeze measures | Pneumatic blowing or vacuum suction | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Jug location | Hanging water tank on both sides, a front tank of sub-bin | The thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Optional configuration | Liquid full alarm, liquid full stop, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic twist | ||
New craft:
Optional configuration:
vacuum tank truck composition structure:
Sewer cleaning truck technical training support:
Sewage tanker truck part,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
