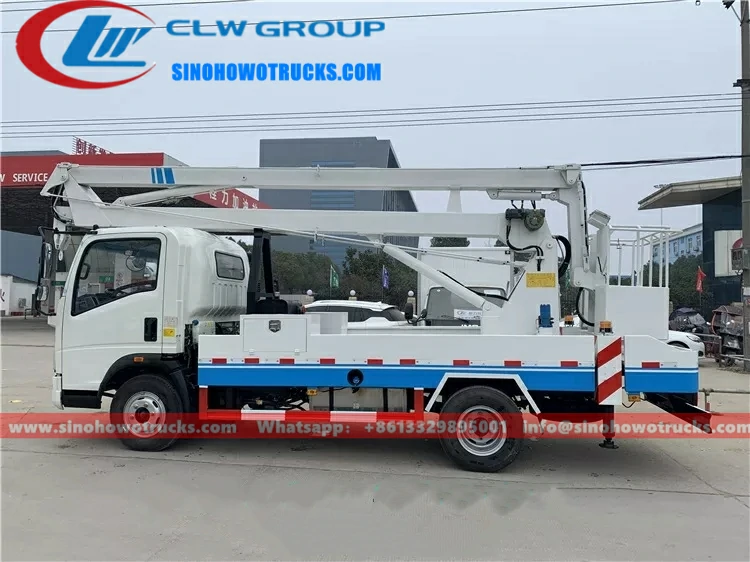

Sinotruk Howo 16m cherry picker boom lift Description:
- Sinotruk Howo 16m cherry picker boom lift also called Overhead working truck, Basket crane truck, Aerial lift working truck, Manlift boom truck, Hydraulic telescopic boom truck, Truck-mounted aerial platform.
- Aerial lift Man truck is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Advantage:
- 100% custom-made
- 8m to 45m available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- Sinotruk engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Working cage can be made of steel structure or reinforced fiberglass (insulated cage); can rotate 90 degrees in left and right;
- 4pcs outriggers and front support improve operation stability and safety;
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
- The wireless remote control system is available.
Specification:
| Item | unit | parameter | ||
| Vehicle model | Sinotruk Howo 16m cherry picker boom lift for sale South Africa | |||
| Chassis model | ZZ1067F341CD165 | |||
| Overall dimensions | mm | 7400×2250×3150 | ||
| Fact loading | kg | 200 | ||
| Mass in working order | kg | Appro×5850 | ||
| Body internal dimensions | mm | / | ||
| Wheel base | 3360 | |||
| F/R track base | 1605/1545 | |||
| Approach/departure angle | ° | 24/11 | ||
| Exhaust/kw | ml/kw | 3760/105 | ||
| Max speed | km/h | 95 | ||
| Tire specification | 7.50R16 | Engine type | ISF3.8s4R141 | |
| Traction system | 4×2 | Transmission | 6-speed with over drive | |
| Number of axles | 2 | Electric system | 24v | |
| Operation control system | Electrically hydraulic control | Allowable passengers in cab | 3 | |
| Equipment | 1. max operation height=14m,max operation radius>5.7m,max working platform height>11.5m, working platform rating loading=200kg, working platform rating allowable passengers=2, working platform dimension:1100*570*1000mm,360°turning(left or right),4 H-shape legs.
2. clients can choose hydraulic parts made in China or Italy,to be mentioned. |
|||
| Engine | Beijing Foton Cummins Engine Co., Ltd.,141 hp | |||
Folding arm aerial platform truck Working parameter:
Manlift boom truck New craft:
Aerial lift working truck Bodywork details:
ISUZU Aerial platform truck features：
-
The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting
-
Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable
-
The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
-
Fully telescopic working arm, high operating efficiency, wide operating range
-
Octagonal cross section of working arm, good love, made of high strength material, good reliability
-
There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
-
Remote control system of engine speed, easy to operate and high efficiency
-
The support legs can be operated on both sides of the cab, which is convenient and efficient.
-
The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
-
360-degree turntable rotation, wide operating range, improve efficiency.
Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
