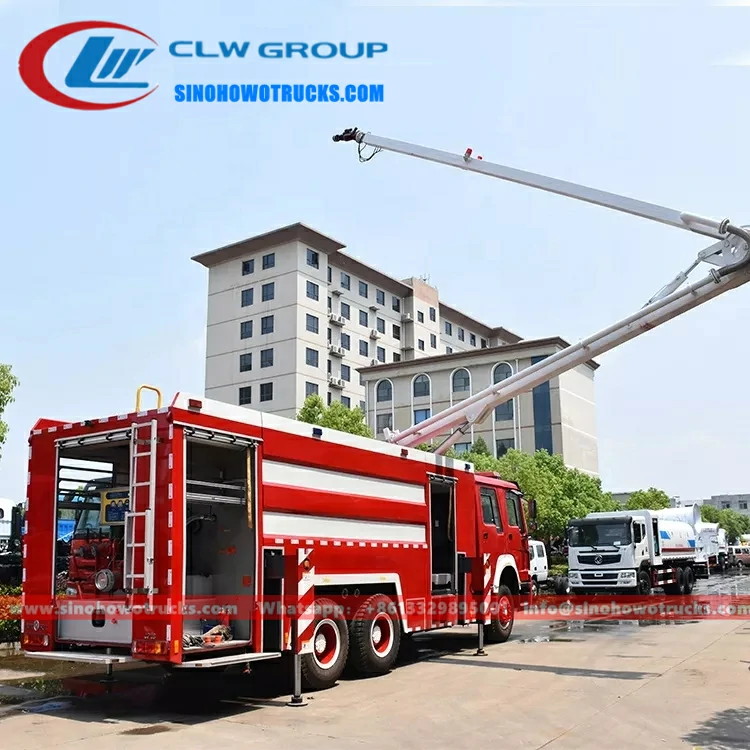

Sinotruk HOWO 18m High altitude spray airport fire truck Description:
- Sinotruk HOWO 18m High altitude spray airport fire trucks are also called fire fighting tankers, fire appliances, fire fighting engines, fire-extinguishing water trucks, service trucks, fire rescue trucks, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage:
- 100% custom-made
- HOWO heavy-duty Chassis, Durable & Performance.
- Sinotruk engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification:
| Descriptions | Sinotruk HOWO 18m High altitude spray airport fire truck Ghana | ||
| General | GVW/Curb weight | 29000kg/13050kg | |
| Rate of load | 15000kg | ||
| Overall size | 9900x2500x3500 | ||
| cab | Cab | Flat head, double-row, four doors, hydraulic tilt cab,2+4 seat, 4 Set of safety belt in the back seats. Manual window | |
| Chassis | Siren control system | Yes | |
| Air conditioner | Yes | ||
| Drive type | 6×4 left hand drive | ||
| Fuel type: | Diesel | ||
| Engine manufacturer/model | WEICHAI/ WD615.69 | ||
| Power | 247kw/336hp | ||
| Displacement | 9726ml | ||
| Emission standard | Euro 2 | ||
| Engine type | Inline six cylinder, four-stoke, water-cooled, turbocharged and intercooled, fuel direct injection pump. | ||
| Shift box | 9-speed Forwarder with 2 Reverse | ||
| Brake | Air brake | ||
| Wheelbase | 4325+1350 | ||
| No. of axle/payload | 3/7000kg/16000kg | ||
| Tire specification/No. | 11.00-20/10+1 | ||
| Max speed | 85km/h | ||
| Paint color | Red paint | ||
| Special configuration | Water Tank capacity | 10,000L Made in high-strong carbon steel with anti-corrosion | |
| Foam tank capacity | 2000L Made in high quality steel with anti-corrosion | ||
| Consist of crew compartment, water tank (body), pump house, equipment compartments, water and foampump system, fire monitor, electronic sirens, lights and fire equipment. | |||
| This truck is improved and refitted with chassis of HOWO. It is equipped with foam spraying fire system. The spacious cabin is suitable for six crews. Its internal structure reasonable and compact its foam spraying fire system could be used signally or jointly | |||
| Atmospheric pressure pump fire pump: CB10/60 @ 1.0Mpa,Leading water time 50s, within water depth 7m | |||
| Fire monitor Model: PL48(dual-purpose gun blisters) Water range 55m/1.0MPa , foam range: 50m/1.0MPa | |||
| Technical Data for monitor sky lifting function | |||
| Max. Working Height | 18m(22m,25m,28m can be chose) | Outrigger Span | 2350mm |
| Max. Working Radius | 6.5m | Rotation Angle | 360 |
| Max Luffing Angle of Boom | 85 | Rated Pressure Of Hydraulic System | 16Mpa |
| Max Luffing Angle of Forearm | 155 | Max Oil Flow Of Hydraulic System | 30L/min |
| Safety Performance | On and off interlock device | ||
| Turntable indication device | |||
| Boom and forearm interlock device | |||
| Rotation limit device | |||
| System does not work after power failure | |||
| Soft leg alarm function | |||
| Boom and forearm Angle Mechanical limit device | |||
ISUZU Fire fighting vehicle Bodywork details:
Fire equipment table:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | straw | 125×4 meters | 2 | root | Threaded |
| 2 | Water filter | FLF125 | 1 | Piece | Threaded |
| 3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
| 4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
| 5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
| 6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
| 7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
| 8 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
| 9 | Hose hook | 4 | Piece | ||
| 10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
| 11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
| 12 | Suction pipe wrench | FS100 | 2 | Piece | |
| 13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
| 14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
| 15 | Fire extinguisher | 3KG | 1 | With | |
| 16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
| 17 | Rubber hammer | 1 | Piece | ||
| 18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment:
| Serial number | name | specification | Quantity | unit | Remarks |
| 1 | Automatic charging device | 12V | 1 | set | |
| 2 | Air backrest | 3 | set | ||
| 3 | Air breathing apparatus | Number of members | set | ||
| 4 | Hose bridge | rubber | 2 | vice | |
| 5 | Telescopic ladder | 1 | vice | ||
| 6 | Hand lift the pump | 1 | station | ||
| 7 | Breaking tools | 1 | set | ||
| 8 | Other fire equipment |
fire fighting engine Parts Picture：
Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
