Introduction：

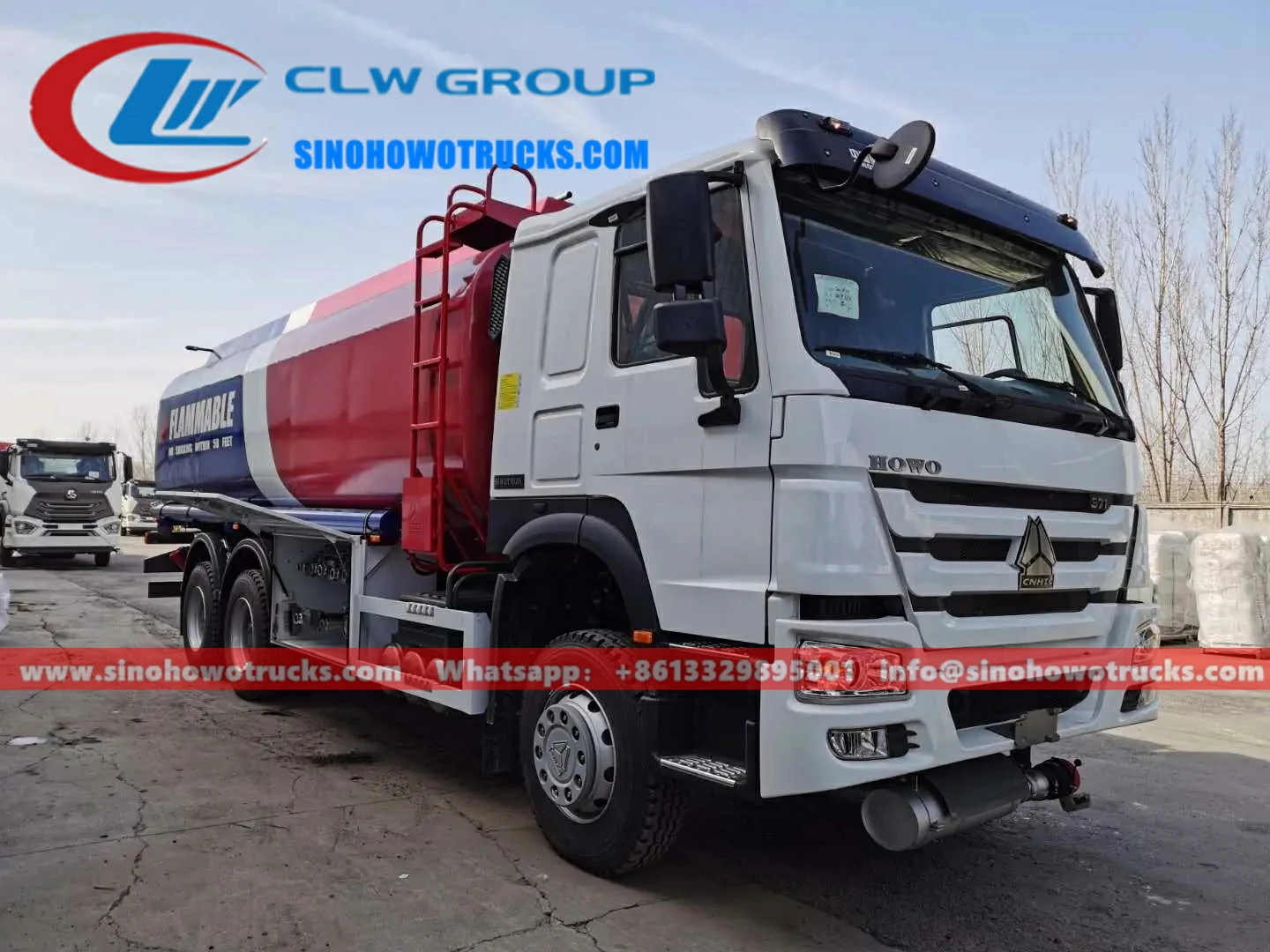

Sinotruk Howo 20 tons oil lorry (also called fuel oil bowser, diesel gasoline tanker bowser, fuel oil dispenser truck, petrol tanker truck, refuel bowser vehicle) is used to transport oil, diesel, gasoline, kerosene, etc.
ChengLi company’s Production fuel bowser can be divided into many compartments to transport different types of fuels, lubricants, crude oil, alcohol…

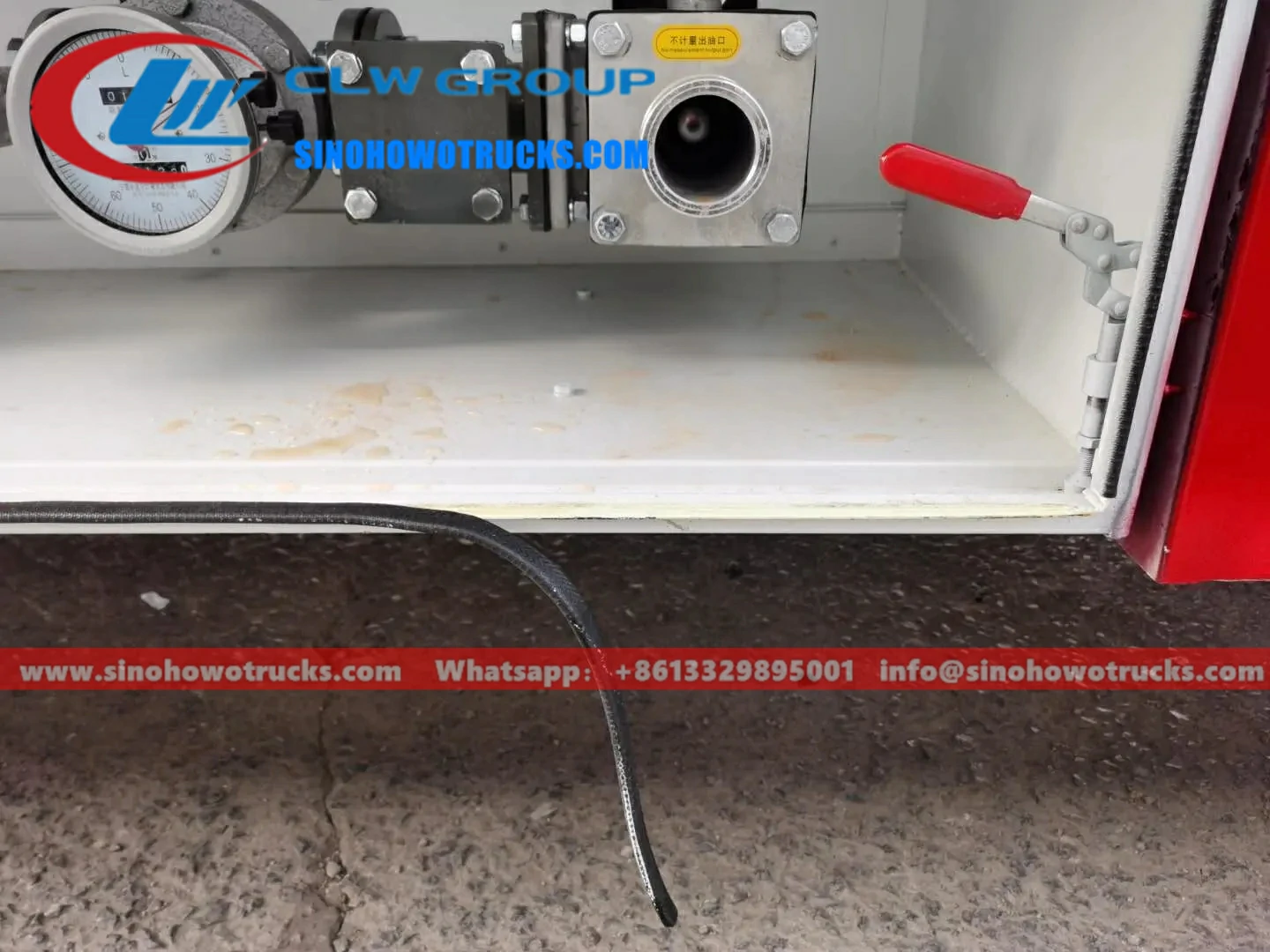

ISUZU fuel truck can be equipped with an oil pump and refueling machine, flow meters all for easy operation.
Advantage：
- Sinotruk Howo chassis, perfect performance
- ISUZU engine, super powerful, no overhaul within 500,000 km.
- Fuel Tanker capacity from 3 to 32 Cubic meters.
- Easy operation and easy maintenance.
- Euro V and Euro VI engines meet the environmental protection requirements of all countries.
- China largest Isuzu truck manufacturer, focusing on Isuzu truck manufacturing for 17 years.
- Top parts two-year warranty, after the warranty period, we only charge the cost price.
Specifications:
| Sinotruk Howo 20 tons oil lorry for sale Myanmar | |
| Chassis Model | ZZ1326N466GE1K (Left/ Right Hand Driving Type Optional) |
| Engine | Model: WD615.47, Euro 2, 371HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L |
| Clutch | Single-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance |
| Gearbox | SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse |
| Front Axles | HF9, 9000kg with drum brake system(or HF7,7000kg with drum brake system) |
| Rear Axles | HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 4.42, 4.8, 5.73, OR ST16, 2X13000kg, double stage reduction (central+ hub), cast axle housing, ratio: 3.93, 4.42, 4.8, OR MCY13Q, 2X13000kg, central single stage reduction, ratio: 3.08, 3.36, 3.7, 4.11, 4.63 |
| Suspension | Front suspension: 10 pcs (or 3 pcs) leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension: 12 pcs (or 5pcs or 15pcs) leaf springs with bogie spring and stabilizer |
| Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | |
| Steering System | brand power steering, model 8118 , hydraulic steering with power assistance |
| Braking System | Front drum rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms |
| Tires | 295/80R22.518PR,12R (12.00-20,315/80R22.5, 295/80R22.5. 12R22.5, 12.00R24 optional), with one spare tyre |
| Fuel Tank Volume (L) | 400 (600) |
| Dead Weight | 9180 |
| Gross Vehicle Weight (kg) | 25000 |
| Rated Combination Weight(kg) | 32400 |
| Rated Loading Weight (kg) | 15690 |
| Overall Dimension (LxWxH) (mm) | 9000x2500x3945 |
| Wheelbase (mm) | 3625+1350 |
| Min.Ground Clearance (mm) | 314 |
| Approach/Depart Angle(°) | 16/(26/35) |
| Gradeability (%) | ≥50 |
| Min. Turning Diameter (m) | 15 |
| Effective Mixing Voulume(m3) | 9 |
| Remark (Engine Power Option) | 371HP |
| Cargo Volume | 10M3 |

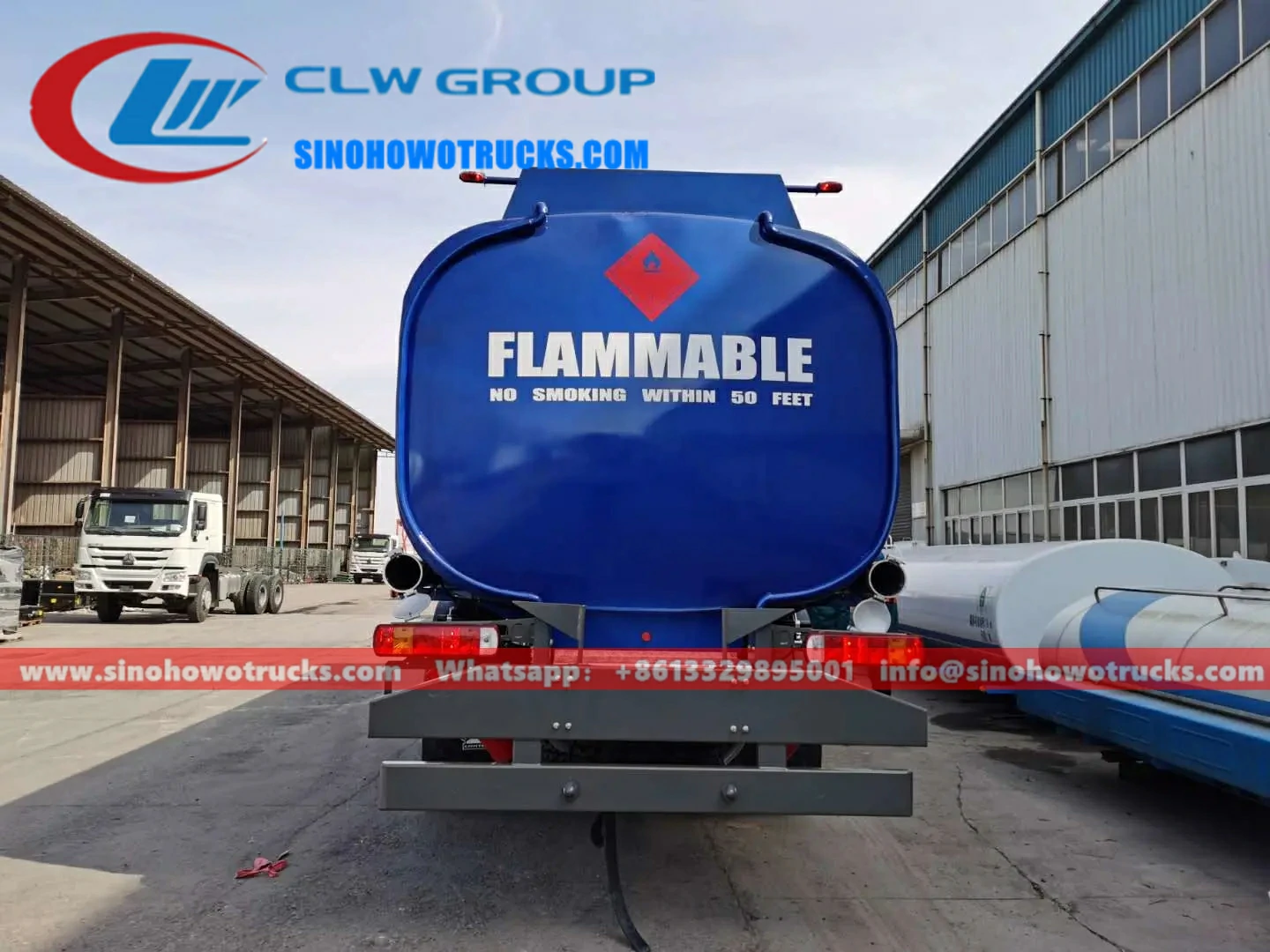

Sinotruk fuel tanker truck structure picture：
HOWO Oil Truck technical training support：
Fuel Tanker Truck Parts：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Sino oil truck Factory Advantage：
Export Document：
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection …
Diesel truck Shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Fuel truck Batch delivery case：
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
