Sinotruk Howo 21m man lifter truck Description:
- Sinotruk Howo 21m man lifter truck also called Overhead working truck, Basket crane truck, Aerial lift working truck, Manlift boom truck, Hydraulic telescopic boom truck, Truck-mounted aerial platform.
- Aerial lift Man truck is ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.
Advantage:
- 100% custom-made
- 8m to 45m available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- Sinotruk engine & gearbox, super-powerful, no overhaul within 500,000 km.
- Working cage can be made of steel structure or reinforced fiberglass (insulated cage); can rotate 90 degrees in left and right;
- 4pcs outriggers and front support improve operation stability and safety;
- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.;
- The wireless remote control system is available.
Specification:
| Detailed Specification | ||
| 1 | Working height/name | 18M/21M/23M/28M

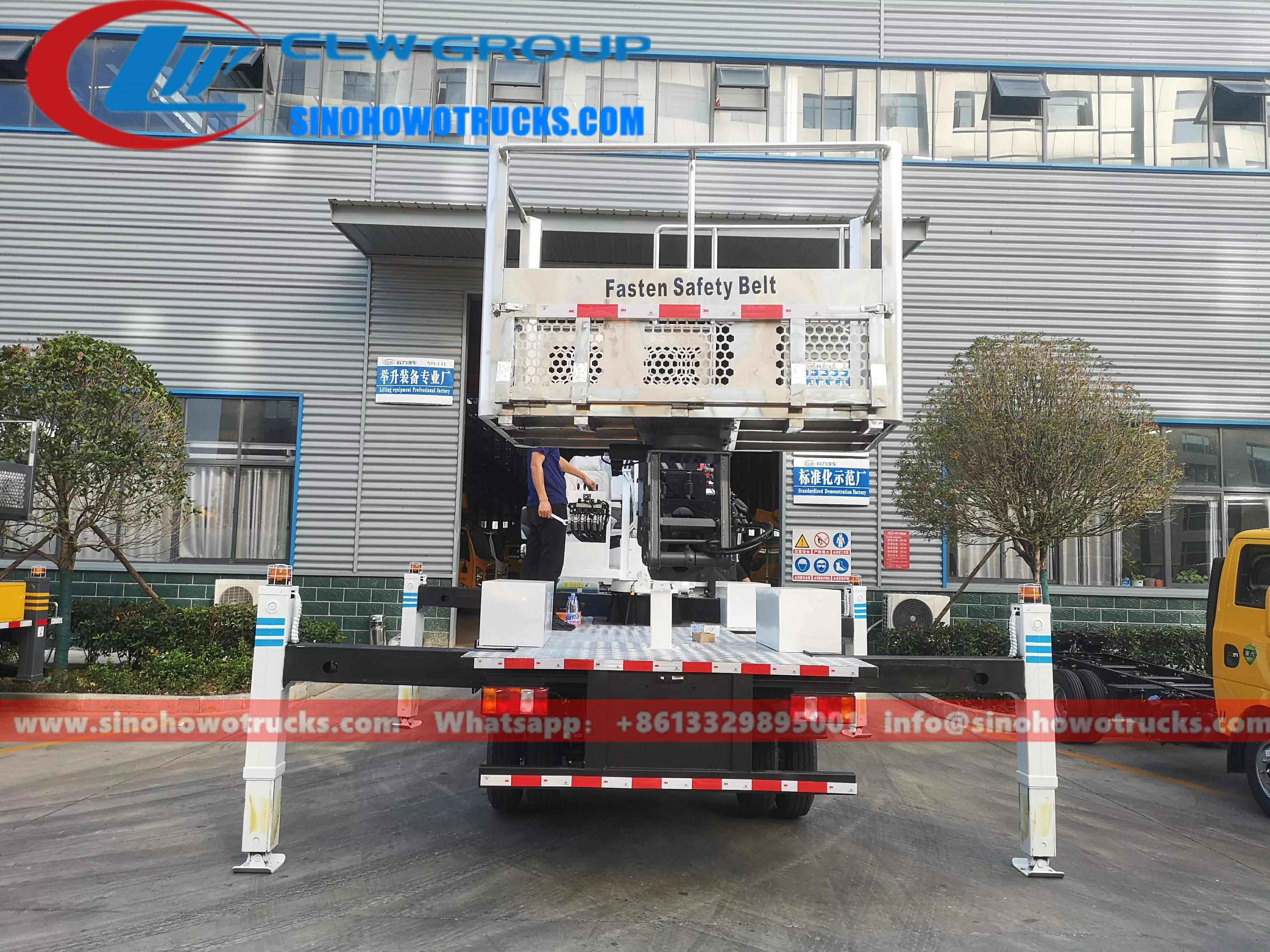

Sinotruk Howo 21m man lifter truck Tanzania |
| 2 | Main technical parameters of operation | The height of the platform from the ground ≥12m
Max operating range of the platform ≥10m Operating height when the platform’s max operating range is ≥14.3m Max working angle of platform 80° Rated load of working bucket: 200kg |
| 3 | Outrigger | Mode: Front outrigger: V type,rear outrigger: H type, individually adjustable
Quantity: 4 Control: individually adjustable or linked Front leg lateral span: 3685mm Inclination: 120° Rear outrigger lateral span : 3780mm |
| 4 | Main operation | Operating position: turntable, remote control operation.
Control form: ZYK bus control system, electro-hydraulic proportional control system to realize stepless speed regulation |
| 5 | Hoarding and stepping board | Stainless steel fence and anti-skid stepping board |
| 6 | Boom structure | Five-section working arm, synchronized telescopic |
| 7 | Slewing device | Two-way 360-degree continuous rotation, 360-degree rotation of the hanging basket |
| 8 | Upper body main configuration | A.Operating height 21 meters,
B.The whole truck has four hydraulic telescopic legs (up and down telescopic and horizontal telescopic), eight cylinders in total. C.The outriggers are front V and rear H type, D.Emergency pump, working bucket 360 degree rotation, wireless remote control, and others are factory standard configuration. |
Folding arm aerial platform truck Working parameter:
Manlift boom truck New craft:
Aerial lift working truck Bodywork details:
ISUZU Aerial platform truck features：
-
The truck adopts the international leading Qingling high-end chassis and is equipped with a special device for straight arm hydraulic lifting
-
Three operating modes: wireless + wired + handle, more convenient to use, adapt to various working conditions, computer intelligent control, automatic limit range, automatic alarm device for dangerous working conditions, more safe and reliable
-
The work bucket and the rear of the entrance and exit, easy to enter and exit, good passability
-
Fully telescopic working arm, high operating efficiency, wide operating range
-
Octagonal cross section of working arm, good love, made of high strength material, good reliability
-
There is an emergency power source for more protection, and a 220V power socket is provided when getting off the car, which can easily lead the 220V power source to work at a high place.
-
Remote control system of engine speed, easy to operate and high efficiency
-
The support legs can be operated on both sides of the cab, which is convenient and efficient.
-
The outrigger is H-shaped, the outrigger span is large, and the stability is good. It can be operated at the same time or separately, adapting to various ground conditions
-
360-degree turntable rotation, wide operating range, improve efficiency.
Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
