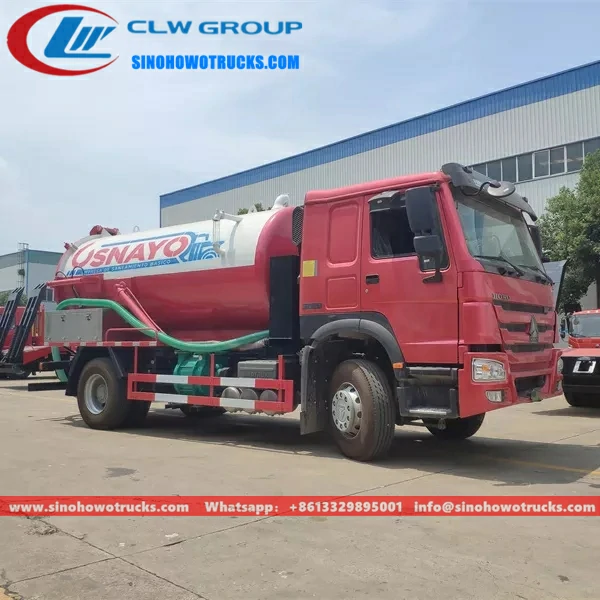

Sinotruk Howo 3000gallons sewage truck Description:
- Sinotruk Howo 3000gallons sewage trucks also called suction vacuum truck, vacuum vehicle, sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks,sewer tanker trucks.
- A vacuum sewage suction truck is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Advantage:
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- Sinotruk HOWO chassis, perfect performance
- Sinotruk technology engine option, super-powerful, no overhaul within 500,000 km.
Specification:
| Name | Sinotruk Howo 3000gallons sewage truck for sale Thailand | |
| Model | ZZ1167M4611 | |
| Driving Type | Left Hand Drive | |
| Over Dimension | 7990×2496×3000 (mm) | |
| Maximum driving speed | 90 (km/h) | |
| Gross vehicle weight | 16000(Kg) | |
| Engine | Model | WD615.92 |
| Fuel type | Diesel | |
| Horse Power | 266HP | |
| Emission | Euro II | |
| Fuel tanker capacity | 400L, Aluminum alloy | |
| Transmission | Model | HW19710,10 forwards and 2 reverse |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | Spring energy, compressed air operating on rear wheels | |
| Auxiliary brake | Engine exhaust brake | |
| Steering system | Model | ZF8118sewage truck |
| Front axle | HF7 drum | |
| Rear axle | ST16 | |
| Tire | 295/80R22.5,7units | |
| Cab | HW70 cab with no sleeper and air conditioner, all-steel forward control, 55°hydraulic tilting to the front,
2-arm windscreen wiper system with 3 speeds,VDO electrical control system, laminate windscreen, with casted-in radio aerial, adjustable driver’s seat and rigid adjustable co-driver’s seat, heating & ventilation system, with stereo radio/cassette recorder, sun visor, safety belt, air conditioner |
|
| Other | Sewage suction truck installs force taking device, transmission shaft, vacuum pump, pressure tank,
hydraulic parts, pipe network system, and equipped with a vacuum pressure gauge,dung window (pipe) device.9meter long 360 degree swivel suction tube,Hangzhou Weilong vacuum double pump, separator, fourway valve.Tank head is 6mm,body size: length 7080mm* macro axis 240 mm* minor axis1620 mm,four partition boards,turtle heads,rear head with a 6 Inch disc valve excrement outlet. used sewage suction truck |
|
Working parameter:
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
New craft:
Optional configuration:
vacuum tank truck composition structure:
Detail drawing:
Sewer cleaning truck technical training support:
Sewage tanker truck part,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
