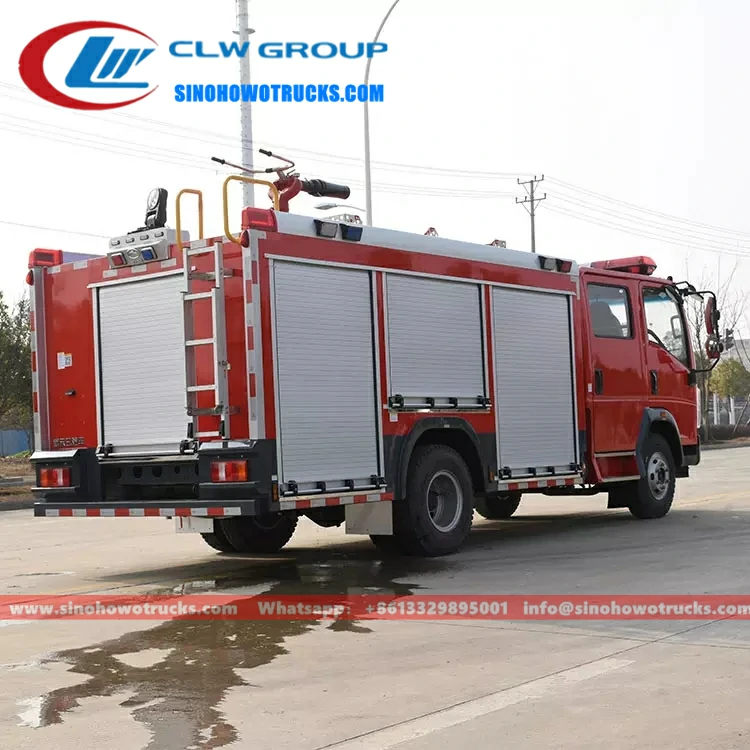

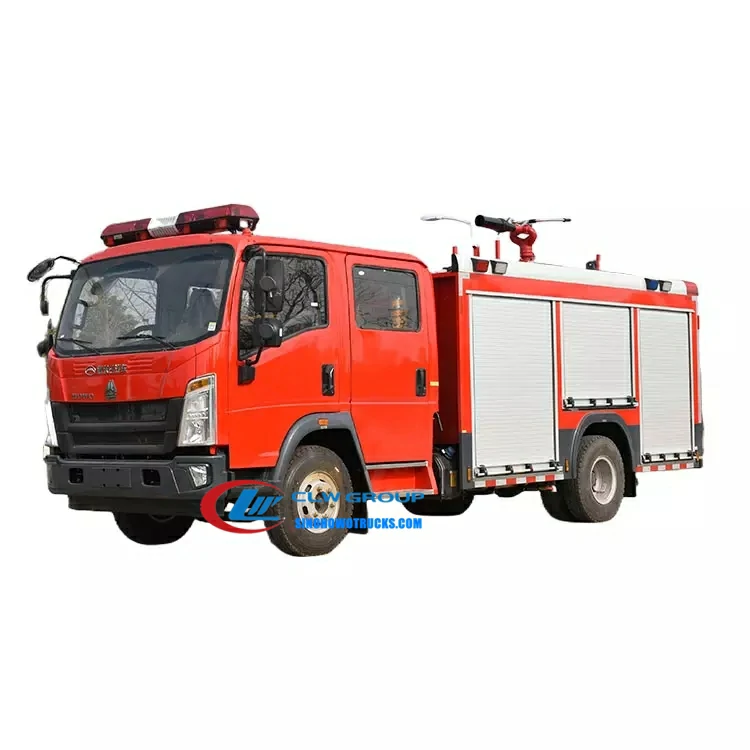

Sinotruk Howo 5 ton fire fighter truck Description:
- Sinotruk Howo 5 ton fire fighter trucks are also called fire fighting tankers, fire appliances, fire fighting engines, fire-extinguishing water trucks, service trucks, fire rescue trucks, fire engine, fire tender, fire vehicle, fire fighting equipment, fire fighting foam tanker.
- This fire truck is designed primarily for fire fighting operations – to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximally.
- Fire fighting trucks types: Water fire truck, foam fire truck, Dry powder fire fighting truck, Emergency rescue fire truck, equipment fire truck and more.
- Application: Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments.
- According to the fire agent, there are water tank fire fighting trucks, dry powder fire fighting trucks, water/foam fire fighting trucks.
Advantage:
- 100% custom-made
- HOWO heavy-duty Chassis, Durable & Performance.
- Sinotruk engine & gearbox, super-powerful, no overhaul within 500,000 km.
- High-performance fire pump and fire cannon
- Water tank and Foam tank capacity can be optional.
- Tanker material: Carbon steel or Stainless steel
- With a complete set of fire fighting Accessories & Equipment, your can put in work immediately.
- Easy operation and easy maintenance.
- FREE training in our factory if you need it.
Specification:
Sinotruk Howo 5 ton fire fighter truck Indonesia | |||
General
|
Vehicle Model
|
CLW5110GXFSG40/Z6A
|
|
Vehicle Brand
|
CHENGLI
|
||
Chassis Brand
|
HOWO ZZ1117G3815F112
|
||
Overall Dimension(mm)
|
7060×2320×3100
|
||
GVW/Curb Weight(kg)
|
10700/5050/5000
|
||
Chassis Parameters
|
|||
Cab
|
Cab Seat
|
3+3
|
|
Air Conditioner
|
Yes
|
||
Engine
|
Fuel Type
|
diesel
|
|
Engine Model
|
WP3NQ160E61
|
||
Engine Brand
|
Weichai
|
||
Power(kw/hp)
|
118/160
|
||
Displacement(cc)
|
2977
|
||
Emission Standard
|
Euro6
|
||
Chassis
|
Drive Type
|
4*2
|
|
Transmission
|
6speed, Manual
|
||
Wheelbase(mm)
|
3800
|
||
Tyre Specification
|
8.25R16LT
|
||
Tyre No.(pcs)
|
6+1
|
||
Max Speed(km/h)
|
90
|
||
Paint
|
Red
|
||
Fire Truck Water Tank Structure Parameters
|
|||
Tank Volume
|
4000L
|
Tank Material
|
Carbon Steel
|
Tank Thickness
|
4/3/3mm
|
Fire pump
|
CB10/40
|
Fire monitor
|
PS40
|
Color and
|
Optional
|
Standard configuration
|
Chassis,sub frame, van body,national standard equipment box, 25 units national standard fire-fighting equipment,fire pump(CB10/40
according to the capacity), fire gun(PS40 according to the capacity),fire power take off, sliding gate, row type lights, reel, common tools,rear climbing ladder,water tank. |
ISUZU Fire fighting vehicle Bodywork details:
Fire equipment table:
Serial number | name | specification | Quantity | unit | Remarks |
1 | straw | 125×4 meters | 2 | root | Threaded |
2 | Water filter | FLF125 | 1 | Piece | Threaded |
3 | Trap | FII80/65×3-1.6 | 1 | Piece | Internal button |
4 | Water trap | JII125/65×2-1.0 | 1 | Piece | Internal button |
5 | Hose | 13-65-20 | 6 | plate | Low pressure; |
6 | Hose | 13-80-20 | 6 | plate | Low pressure; |
7 | Reducing interface | KJ65/80 | 2 | Piece | Internal button |
8 | Water-retaining cloth | DT-SB | 4 | Piece | Internal button |
9 | Hose hook | 4 | Piece | ||
10 | Ground fire hydrant wrench | QT-DS1; length 400 | 1 | Piece | |
11 | Underground hydrant wrench | Long 860 | 1 | Piece | |
12 | Suction pipe wrench | FS100 | 2 | Piece | |
13 | DC switch water gun | QZG3.5/7.5; 65 | 1 | support | Low pressure; |
14 | DC Flowering Water Gun | QZK3.5/7.5; 65 | 1 | support | Low pressure; |
15 | Fire extinguisher | 3KG | 1 | With | |
16 | Fire waist axe | Length 390; GF-285 | 1 | Piece | |
17 | Rubber hammer | 1 | Piece | ||
18 | Rechargeable portable lighting | 1 | Piece |
Optional fire equipment:
Serial number | name | specification | Quantity | unit | Remarks |
1 | Automatic charging device | 12V | 1 | set | |
2 | Air backrest | 3 | set | ||
3 | Air breathing apparatus | Number of members | set | ||
4 | Hose bridge | rubber | 2 | vice | |
5 | Telescopic ladder | 1 | vice | ||
6 | Hand lift the pump | 1 | station | ||
7 | Breaking tools | 1 | set | ||
8 | Other fire equipment |
fire fighting engine Parts Picture:
Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
