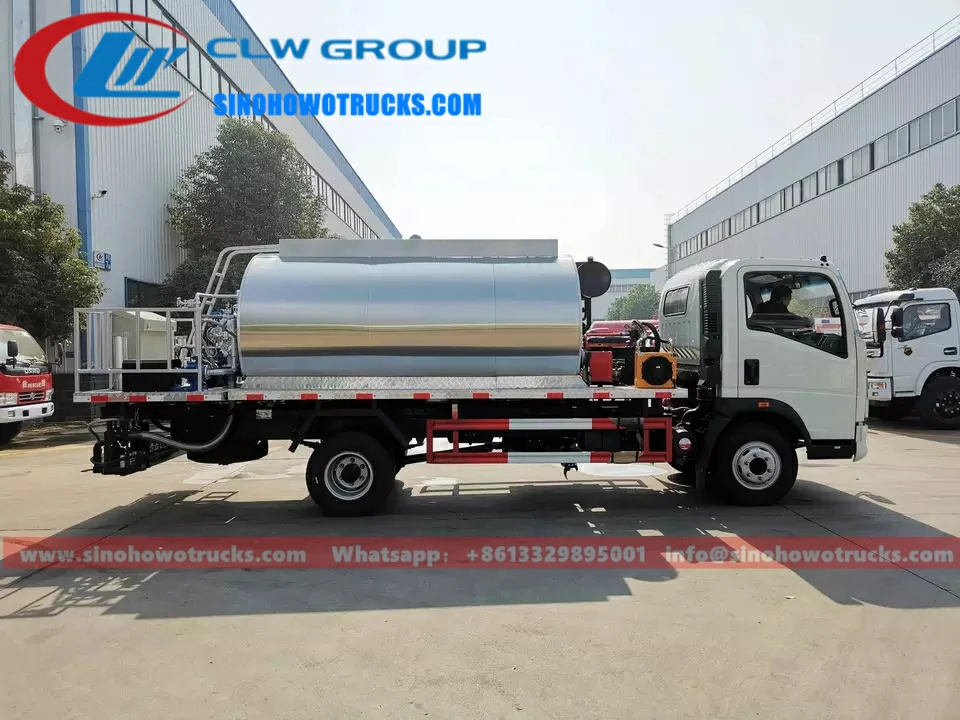

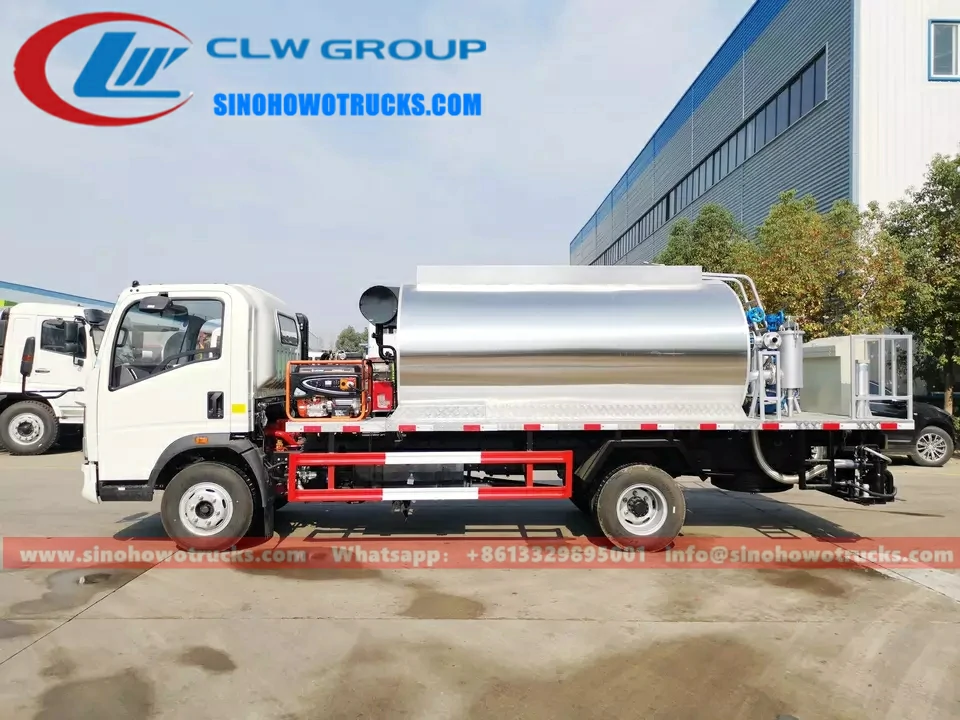

Sinotruk Howo 6000liters bitumen distributor truck Description:
- Sinotruk Howo 6000liters bitumen distributor truck is equipment that is widely used in road construction. It is an intelligent high-tech product that can spread emulsified asphalt, fluxed asphalt, oil refining asphalt, heated asphalt, heavy traffic paving asphalt, and high viscosity modified asphalt. Asphalt distributor is basically made up of chassis, asphalt tank, asphalt pump, spray system, heat conduction oil heating system, hydraulic system, electric control system, distribution control system, and rinsing series. And the distribution system has two main types: hand-controlled and computer-controlled.
Advantage:
Chassis:
- HOWO truck chassis, perfect performance
- SINO series engine, super powerful; reliable performance, no overhaul within 500,000 km.
- Spray width can be adjusted flexibly from 2m to 6m.
- Easy operation and easy maintenance.
Asphalt distributor System:
- Automatic asphalt distributor truck boasts three layers. It can adjust the spray amount according to its operational speed.
- The whole asphalt spraying process can be finished in the cab.
- Each nozzle is controlled by a separate computer. The spray width can be adjusted at random.
- The control procedure is equipped with two control systems, cab, and post-operational platform to ensure the reliability of asphalt spray.
- A Computer control system adopts a modular design for lower accident rates and maintenance.
- A temperature of asphalt in the tank is kept below or equal to two degrees per hour
- The distributor is equipped with an automatic blowing device to shift the asphalt outside to the tank
Specification:
| Sinotruk Howo 6000liters bitumen distributor truck Malaysia | ||||
|
Model
|
CLW5080GLQ
|
|||
|
Color
|
Red ,white or optional
|
|||
|
Drive type
|
4×2,right hand drive
|
|||
|
Dimensions
|
||||
|
Wheel base
|
3800mm
|
|||
|
Overall Dimension
|
7400x2300x2650mm
|
|||
|
Tank volume
|
6,000L
|
|||
|
Weights
|
||||
|
Payload weight
|
9850kg
|
|||
|
Curb weight
|
6300kg
|
|||
|
Front /Rear tread
|
1795/1555mm
|
|||
|
Front/rear overhang
|
1160/2450mm
|
|||
|
Approach/Departure angle
|
18/11(°)
|
|||
|
Engine
|
||||
|
Engine model
|
CY4102
|
|||
|
Engine manufacturer
|
Dongfeng Chaoyang Diesel
|
|||
|
Displacement
|
3856L
|
|||
|
Drive Line
|
||||
|
Transmission
|
6 forwarder,1 reverse gear,Manual operation
|
|||
|
Power steering
|
Yes
|
|||
|
Braking system
|
Service brake
|
air brake
|
||
|
Axles
|
||||
|
Front Axle-Model
|
2.4ton
|
|||
|
Rear Axle(drive axle)-Model
|
7.2 ton
|
|||
|
Tire specification
|
7.50R16, radial tire,6 tires+1 spare tire
|
|||
|
Special function of asphalt distribution truck
|
||||
|
Asphalt tank
|
Material:
|
4mm steel plate.80mm insulation layer,stainless steel outside .it can prevent the heating losing
|
||
|
Tanker volume
|
6m3,one φ440mm manhole
|
|||
|
Thermal asphalt
|
160-180 centigrade
|
|||
|
Asphalt pump
|
Model
|
QGB680
|
||
|
Flow
|
680L/min
|
|||
|
Control system
|
Semi intelligence control,one control two
|
|||
|
Spray width
|
4.5m
|
|||
|
Spraying dosage
|
0.2-3L/㎡
|
|||
|
Asphalt intelligent nozzle
|
34units
|
|||
|
Heating method
|
Heat conducting oil automatic heating
|
|||
|
Burner
|
G10 , imported from Italy
|
|||
|
Generator
|
6KW
|
|||
Asphalt distributor truck Working parameter:
