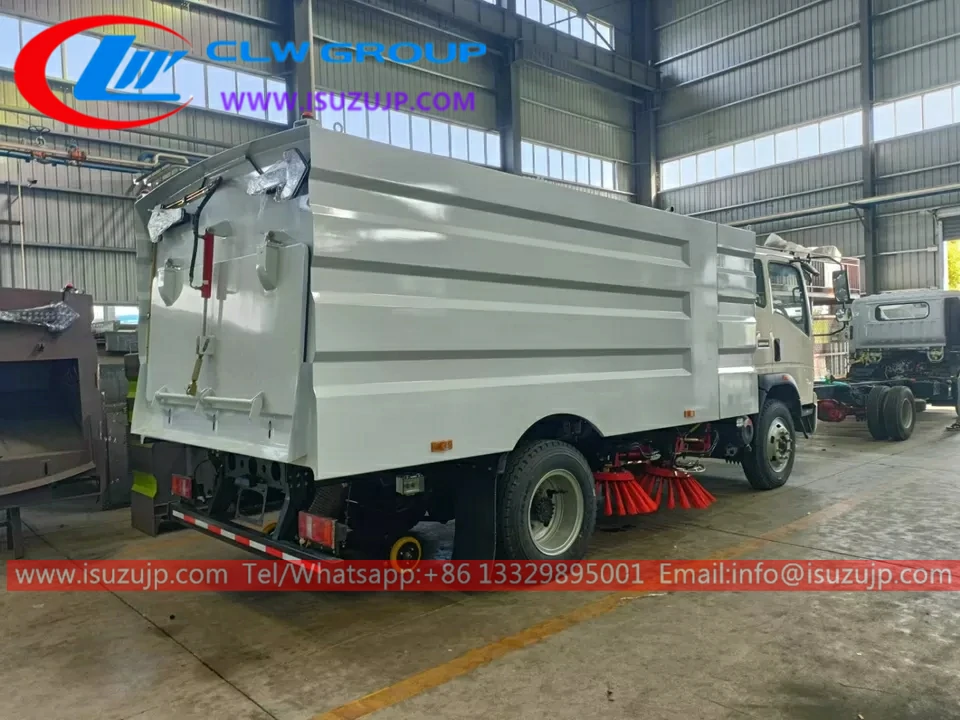

Sinotruk Howo 7cbm road cleaning truck Description:
- Sinotruk Howo 7cbm road cleaning truck also called street sweeper, vacuum sweeper, road sweeping truck, street sweeping truck, road cleaning vehicle
- A road sweeper is suitable for brushing, suction and transportation of dusts, leaves, mud, soil, sand, stone chips, gravels and other small particles on the ground of city roads and areas.
- This unit shall be suitable for dry-type cleaning job as well as dust suppression with water spray in the roadside and narrow lanes.
- CHENGLI road sweeper truck uses whole stainless steel material tanker, Original Italy or America motor for easy operation, ISUZU auxiliary engine, efficiently avoiding secondary pollution.
Advantage:
- HOWO chassis, no overhaul within 500,000 km.
- Sinotruk engine, super powerful; reliable performance.
- Nice shape, rational structure
- Italy imported high-pressure pump, super powerful, efficient pump in and out Strong, durable, perfect performance.
- Road Sweeper body capacity from 2 to 16 Cubic Meter.
- Easy operation and easy maintenance.
- Virious types of refuse container lifters are available.
Specification:
| Condition | New condition Left/Right hand drive/4×2 Sinotruk Howo 7cbm road cleaning truck Vietnam | ||||
| Chassis | Curb weight(kg) | 5040 | |||
| Wheelbase(mm) | 3815 | ||||
| Dimensions(mm) | 7000×2300×2800 | ||||
| Overhang (front/rear) (mm) | 1430/1950 | ||||
| Wheel track (front/rear) (mm) | 1590/1500 | ||||
| Approach/Departure angle(°) | 20/10 | ||||
| Axle Load(kg) | 2400/4200 | ||||
| Max. driving speed(km/h) | 90 | ||||
| Brand | HOWO | ||||
| Tire | Number | 6pcs with one spare tire | |||
| Specifications | 7.50R16 | ||||
| Clutch | Reinforced diaphragm clutch | ||||
| Gear box | Manual type, 6 Forwards & 1 Reverse | ||||
| Cab | It can accommodate three people, with A/C | ||||
| Engine | Model | CY4102 | |||
| Displacement(ml) | 2220 | ||||
| Power(kw)/ Horsepower(HP) | 88/120 | ||||
| Emission standard | Euro 2 | ||||
| Brakes | Service brake: dual circuit compressed air brake Parking brake:(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
||||
| Steering Gear | Power steering, hydraulic steering with power assistance | ||||
| Upper | |||||
| Tank | Garbage tank | Tank material | Stainless steel 304 | ||
| Tank volume(cbm) | 4.0cbm | ||||
| Water tank | Tank material | Stainless steel 304 | |||
| Tank volume(cbm) | 1.5cbm | ||||
| Auxiliary engine | Model | ISUZU(Famous brand) | |||
| Power(kw)
Horsepower(hp) |
55kw/75hp | ||||
| Brush | Quantity(pc) | 4 pcs | |||
| Working area(m) | 3.0-3.5m | ||||
| Remarks | 1. With water spray-bar
2. Rear vacuum cleaner 3. Blower 4. Color is optional |
||||
| Optional | 1. Front and rear water spray system
2. Visual imaging system 3. Front hydraulic cleaning brush |
||||
composition structure:
Core components introduction:
Road sweeping vehicle Optional configuration:
Technical training support:
Road Sweeper accessories,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
Sweeper machine shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
