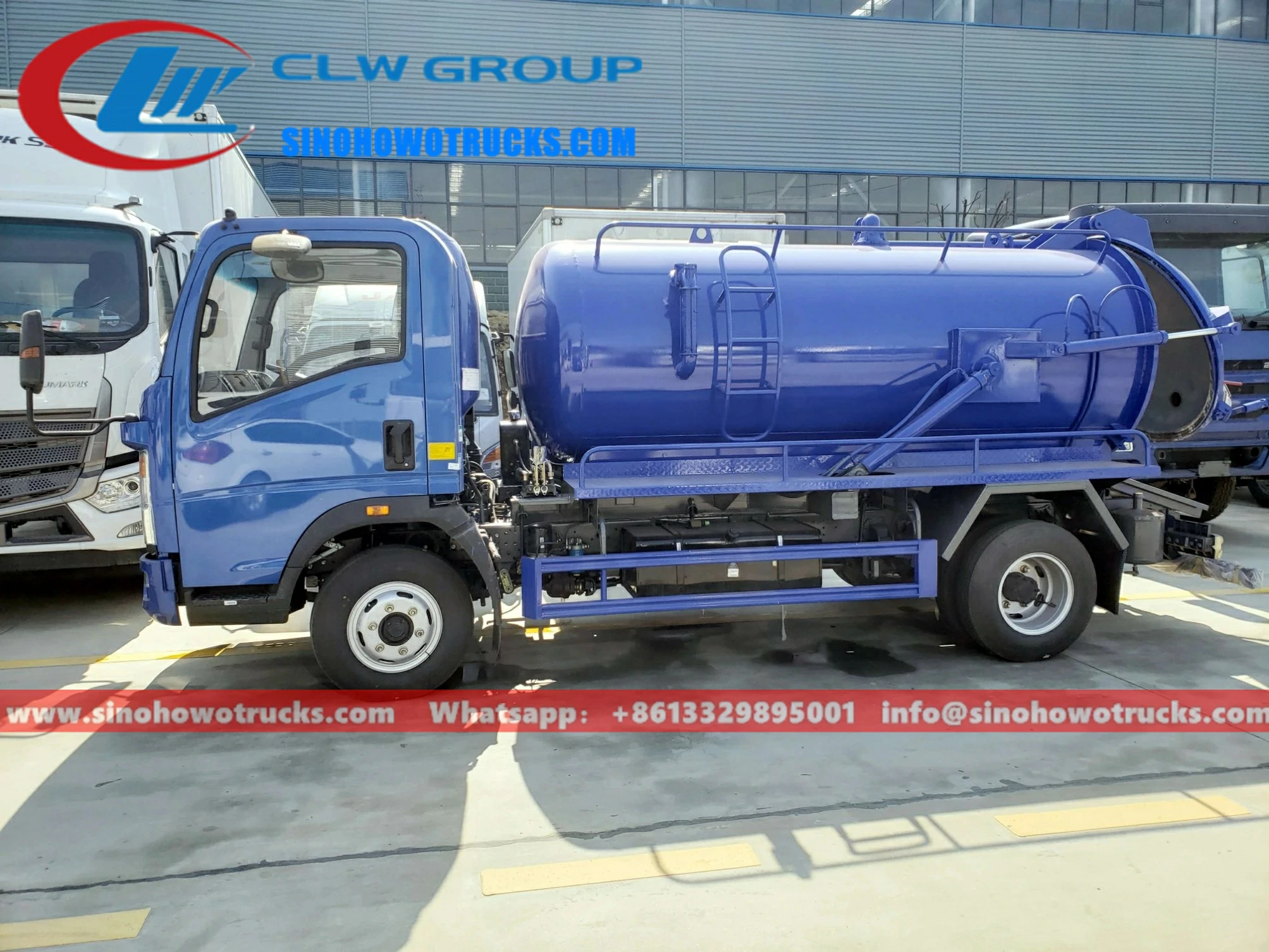

Sinotruk Howo 8000liters sewer suction truck Description:
- Sinotruk Howo 8000liters sewer suction trucks also called suction vacuum truck, vacuum vehicle, sewage tank truck, Sewage disposal tank trucks, vacuum tank trucks,sewer tanker trucks.
- A vacuum sewage suction truck is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
Advantage:
- 100% custom-made
- 3,000L to 30,000L available
- Short delivery time 7~30 days
- Easy operation & Easy maintenance
- 15 years of spare parts & Technical support
- Sinotruk HOWO chassis, perfect performance
- Sinotruk technology engine option, super-powerful, no overhaul within 500,000 km.
Specification:
| Chassis Description | |
| Cab | Sinotruk Howo 8000liters sewer suction truck Angola |
| Color | Optional |
| Allowable person in the cab | 2/3 |
| Wheelbase (mm) | 4200 |
| Number of axles | 2 |
| Front axle | 4000 |
| Rear axle | 7000 |
| 100Traction system | 4×2 |
| Tire specification | 8.25R20 |
| Tire quantity | 6+1 |
| Engine Description | |
| Engine Type | Diesel |
| Engine Brand | YUCHAI |
| Emission standard | Euro 3 |
| Exhaust/output | 2650 |
| Horsepower | 160hp |
| Up-parts Description | |
| Tank capacity (CBM) | 8 |
| Material | Carbon steel |
| Suction Head Pipeline (m) | 7 |
| Vacuum Pump Brand | Italy BP/Weilong/Domestic |
| Vacuum Pump Advantage | High efficient, Vacuum rate 93%, Quick suction and discharge, suction lift 6 m |
| Hose | Wire strengthened hose |
| Standard accessories | Inlet pipeline, Discharge nozzle, Cabin pneumatic control box, basic tool kit |
Working parameter:
| Suction speed | Fill up in 10 minutes | Tank material | Carbon steel Q345, stainless steel 304 |
| Blowdown speed | Finished in a single 8 minutes | Medium and small tank thickness | 5 mm tank, 6 mm head, 4 mm partition |
| Suction horizontal distance | Up to 80 meters | Thickness of large tank | Tank body 6-8 mm, head 8 mm, partition 5 mm |
| Vertical depth of suction | Up to 9 meters | Sewage suction pump | Small Veyron single pump, large Veyron double pump |
| Operation method | Manual + pneumatic + hydraulic | Leak-proof treatment | Rubber strip + hydraulic lock + manual lock |
| Operating position | Cab + car side | Tailgate form | The tailgate is fully open, the tail is fully open |
| Blowdown method | Hydraulic lift dumping + air blowdown | ||
| Other standard | Sight liquid window, hydraulic gauge, 8 meter suction pipe, tail gravity valve, anti-overflow valve, negative pressure meter. | ||
| Optional configuration | Liquid full alarm self-stop, water ring vacuum pump, anti-corrosion treatment in the tank, solid-liquid separation filter cartridge + hydraulic auger, Honda sprinkler pump + sprinkler | ||
New craft:
Optional configuration:
vacuum tank truck composition structure:
Detail drawing:
Sewer cleaning truck technical training support:
Sewage tanker truck part,tools and instructions：
- Free parts for 12 months.
- Supply of original parts.
- DHL serves 7 days worldwide.
rubbish collection vehicle Factory Advantage:
- 19 years of design and export experience.
- 100% customized trucks.
- Quick delivery guarantee.
refuse transfer truck Documents:
- Serving more than 80 countries and regions.
- Professional guidance on import documents.
- CO, FORM E, FORM P, pre-implantation inspection
refuse compactor truck shipping：
- Maximize your shipping costs.
- Professional guidance on import documents.
- Safe, fast and timely
Sewer truck order case:
- Fast shipping to all parts of the world.
- The truck color and logo can be customized.
