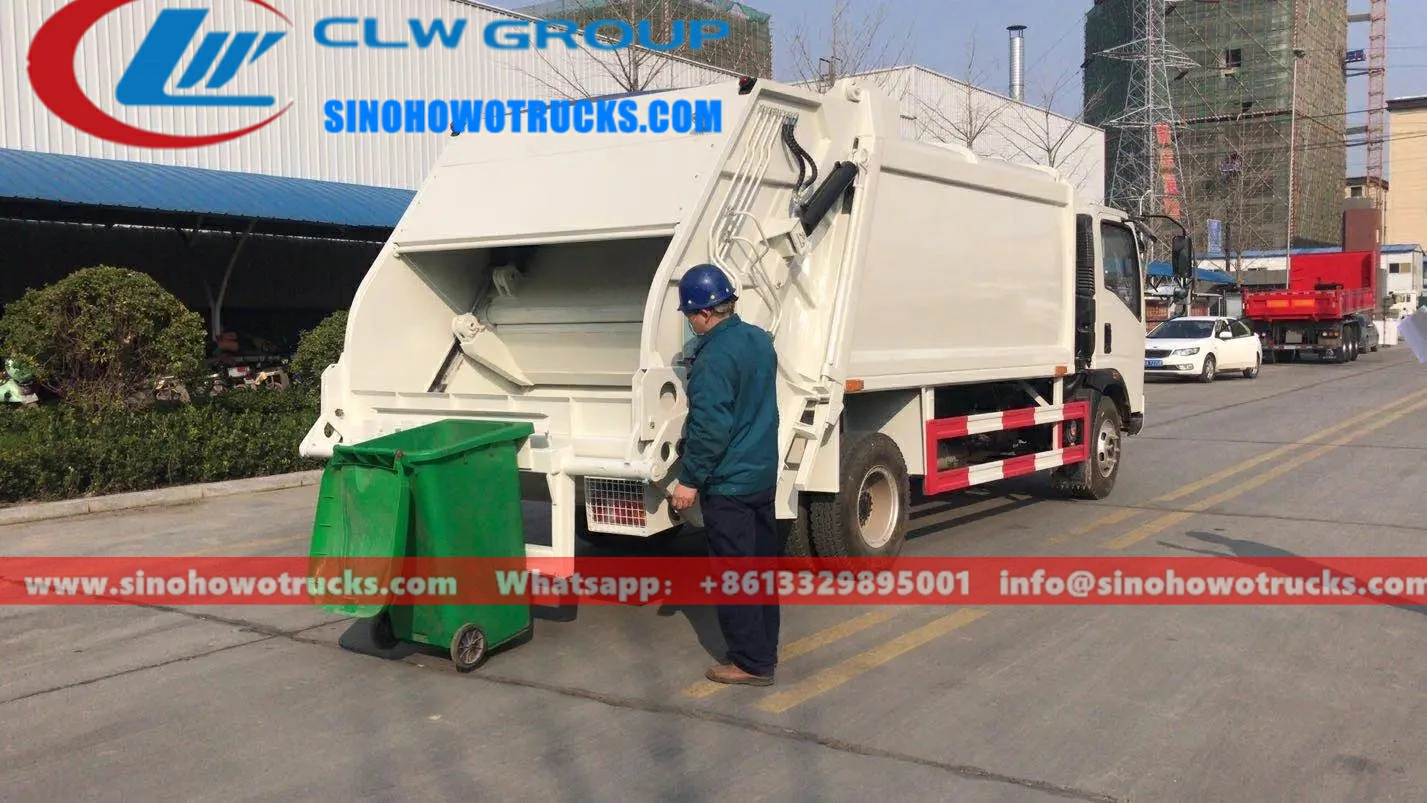

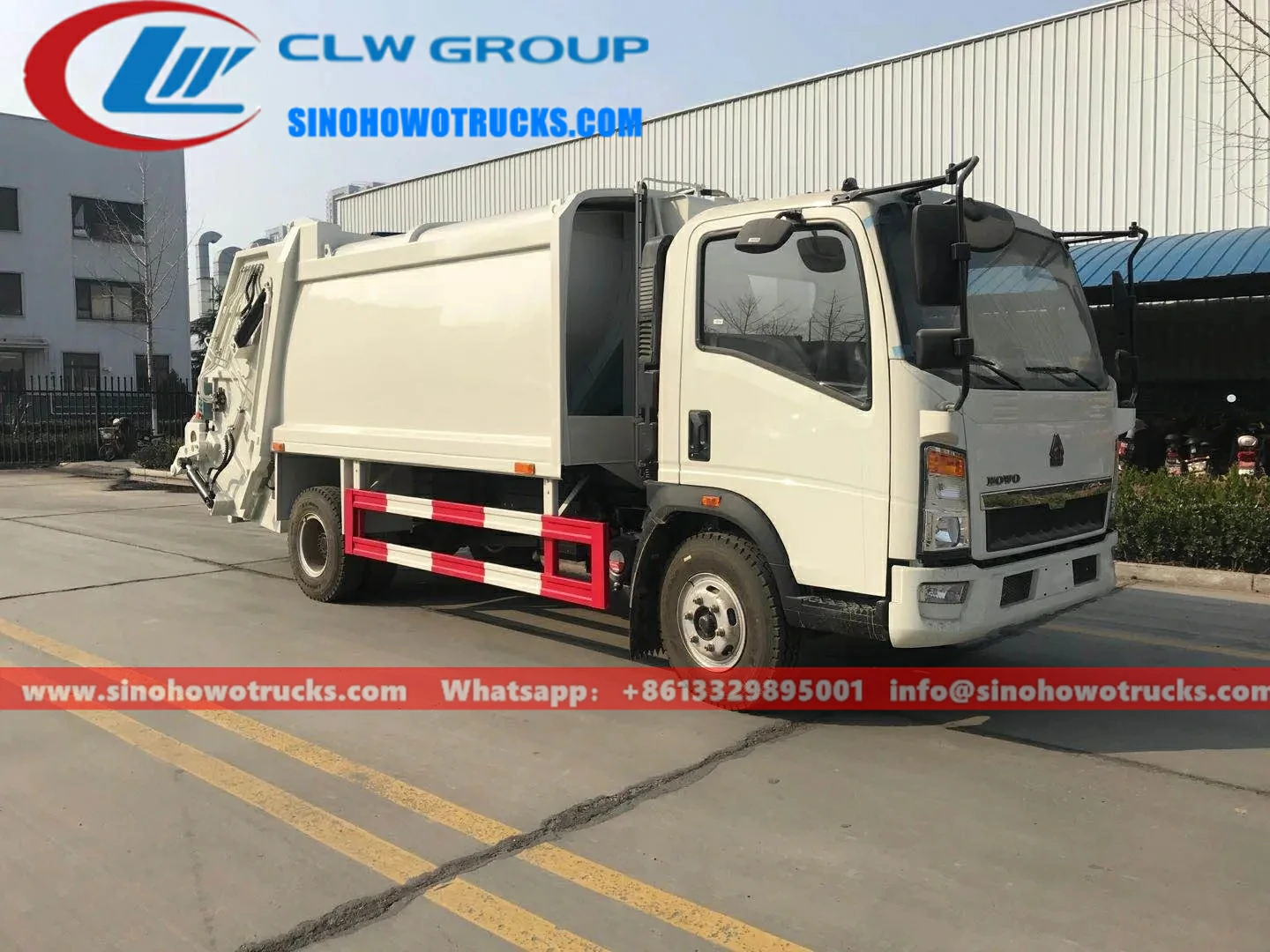

Sinotruk HOWO small garbage truck Description:
- Sinotruk HOWO small garbage trucks also called Truck-mounted compactors, sanitation garbage compactors, compressing garbage trucks, waste compactors garbage trucks, and Hydraulic compressor garbage trucks.
- The compactor garbage truck is designed for daily rubbish transport in such living areas as all kinds of cities, large stations, ports and wharves, airports, and densely-populated areas like industrial and mineral enterprises and military units.
- Chengli compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.
- Refuse compactor vehicle tail-gas discharge reaches EUROPEAN V and VI standards. which is safe and environmental-protective.
Advantage:
- HOWO 110HP light duty chassis, perfect performance
- Sinotruck engine, super powerful; reliable performance, no overhaul within 100,000 km.
- Compression body capacity from 3 to 20 Cubic meters.
- Easy operation and easy maintenance.
- Various types of refuse container lifters are available.
Specification:
| Condition | Sinotruk HOWO small garbage truck Zimbabwe | |||
| Chassis | Curb weight(kg) | 5760 | ||
| Wheelbase(mm) | 3800 | |||
| Dimensions(mm) | 6770×2180×2620 | |||
| Overhang (front/rear) (mm) | 1160/1810 | |||
| Axle Load(kg) | 2700/7200 | |||
| Max. driving speed(km/h) | 95 | |||
| Brand | HOWO | |||
| Tire | Number | 6pcs with one spare tire, total of 7 pieces | ||
| Specifications | 7.50R16 | |||
| Clutch | Dry Single Plate with diaphragm spring | |||
| Gear box | 6 Forwards & 1 Reverse | |||
| Cab | It can accommodate three people | |||
| Engine | Model | CY4102 | ||
| Displacement(ml) | 3760 | |||
| Cylinder quantity(pcs) | 6 | |||
| Power(kW) | 88 | |||
| Horsepower(HP) | 120 | |||
| Emission standard | Euro 2 | |||
| Brakes | Type | Air Brake | ||
| Dryer | Equipped | |||
| Upper | ||
| Garbage Tank | Tank material | Q235 Carbon steel |
| Tank capacity(cbm) | 8 | |
| Ways of Loading | Rear Loading | |
| Dispensing System | 1. Equipped with air-tight dustbin, hydraulic system and operating system.
2. Automatic loading, compressing and discharging, all handled by 1 person 3. Sewage water collection tank to avoid any pollution during handling. 4. Large Pressure, Good Leakage Proof, Convenient Operation Dependable Security 5. Electrical Control Panel for compacting system. 6. Cycling time<14~18s |
Working parameter:
| Hydraulic pump | Long source large flow 32-80 pump, optional double pump, and double valve | Body material | High-strength T420 special steel plate |
| Hydraulic cylinder | Xiamen Yinhua, Yantai Future | Box thickness | Lightweight design with 4mm at the bottom and 5 sides |
| Multi-way valve | Jiangsu Zhongmei, Italy imports | Sewage tank | 2 (1 on the side and 1 on the rear) |
| Conversion mode | Photoelectric switch (formerly pressure relay) | Sewage seal | Tail diversion groove + rubber hydraulic lock |
| Automatic control | Standard configuration, Siemens PLC electronic control | Lighting device | Tail night light |
| Electric control box | 3 (1 in the cab and 2 in the rear) | safety devices | Tail-lift with hydraulic lock |
| Optional configuration | Hanging plastic buckets (120L, 240L, 360L, 480L, 660L), hanging iron buckets, triangle buckets, fully sealed buckets, swing arm racks, electric hydraulic system | ||
